Introduction
A load that's one inch too tall can turn a same-day delivery into a three-day permit delay. Step deck trailer dimensions determine whether freight ships legally, safely, and on schedule.
Misjudging deck height, length, width, or weight capacity ranks among the most common causes of oversize violations and costly shipment rework. A trailer that looks right on paper can still put a carrier over the legal limit once cargo, straps, and dunnage get added.
This guide breaks down standard step deck dimensions, deck height ranges, weight limits, and how step deck trailers stack up against flatbeds and lowboys, so you can plan loads with fewer surprises.
Key Takeaways
- Standard step decks run 48-53 feet long, 102 inches wide (federal limits)
- Upper deck height: ~60 inches; lower deck: 34-40 inches for taller freight
- Weight capacity ranges 40,000-48,000 lbs, depending on axle setup
- Trailer-plus-cargo height should stay under 13'6" to skip permits (state-specific)
- Matching cargo to the right trailer — step deck, flatbed, or lowboy — avoids fines and delays
What Step Deck Trailer Dimensions Represent
A step deck trailer is a two-level flatbed built to solve one specific problem: hauling freight too tall for a standard flatbed without triggering an oversize permit.
The design drops the rear portion of the deck closer to the ground, creating a "step" between the upper and lower sections. That drop is deliberate engineering, not a styling choice.
Step deck dimensions work two ways at once:
- As a design constraint: fixed by the manufacturer and unchangeable once the trailer is built
- As an operating variable: something shippers must match against cargo height, width, and weight before booking
These numbers aren't arbitrary. They're shaped by federal DOT size and weight regulations layered with state-level bridge laws, which is why the "same" trailer type can carry slightly different legal limits depending on where it's driving.
Factors That Influence Step Deck Dimensions in Real-World Operation
Published spec sheets give you a starting point, not a guarantee. Several variables shift the actual numbers you'll work with:
- Manufacturer and model: Great Dane's Freedom series lists a 60-inch upper deck with a lower deck ranging from 34 to 40 inches, depending on configuration, according to the Great Dane Freedom brochure.
- Material composition: all-steel, steel/aluminum combo, and all-aluminum decks each carry different tare weights, which directly changes usable payload.
- Axle configuration: tandem versus tridem setups affect legal gross weight allowances under the Federal Bridge Formula, and therefore how much cargo weight you can actually load.
- Age and wear: older trailers can see deck height sag and payload ratings drop over time. Specs on file with a broker or carrier should be re-verified before booking well-used equipment.
Standard Step Deck Trailer Dimensions: The Complete Range
Step deck dimensions exist inside two boundaries: what the trailer is physically built to handle, and what regulations allow once it's on the road. Both matter, and they don't always move together.
Length and Width
Standard step deck trailers come in two common lengths:
- 53 feet — dominates long-haul freight, offering maximum deck space for large or multi-piece loads
- 48 feet — better suited to regional routes where tighter turns and maneuvering come into play
Width is standardized at 102 inches (8'6") under federal size regulations. This baseline applies on the National Network and reasonable-access routes, per the FHWA's federal size regulations for commercial motor vehicles. Anything wider requires oversize permits and, often, escort vehicles.

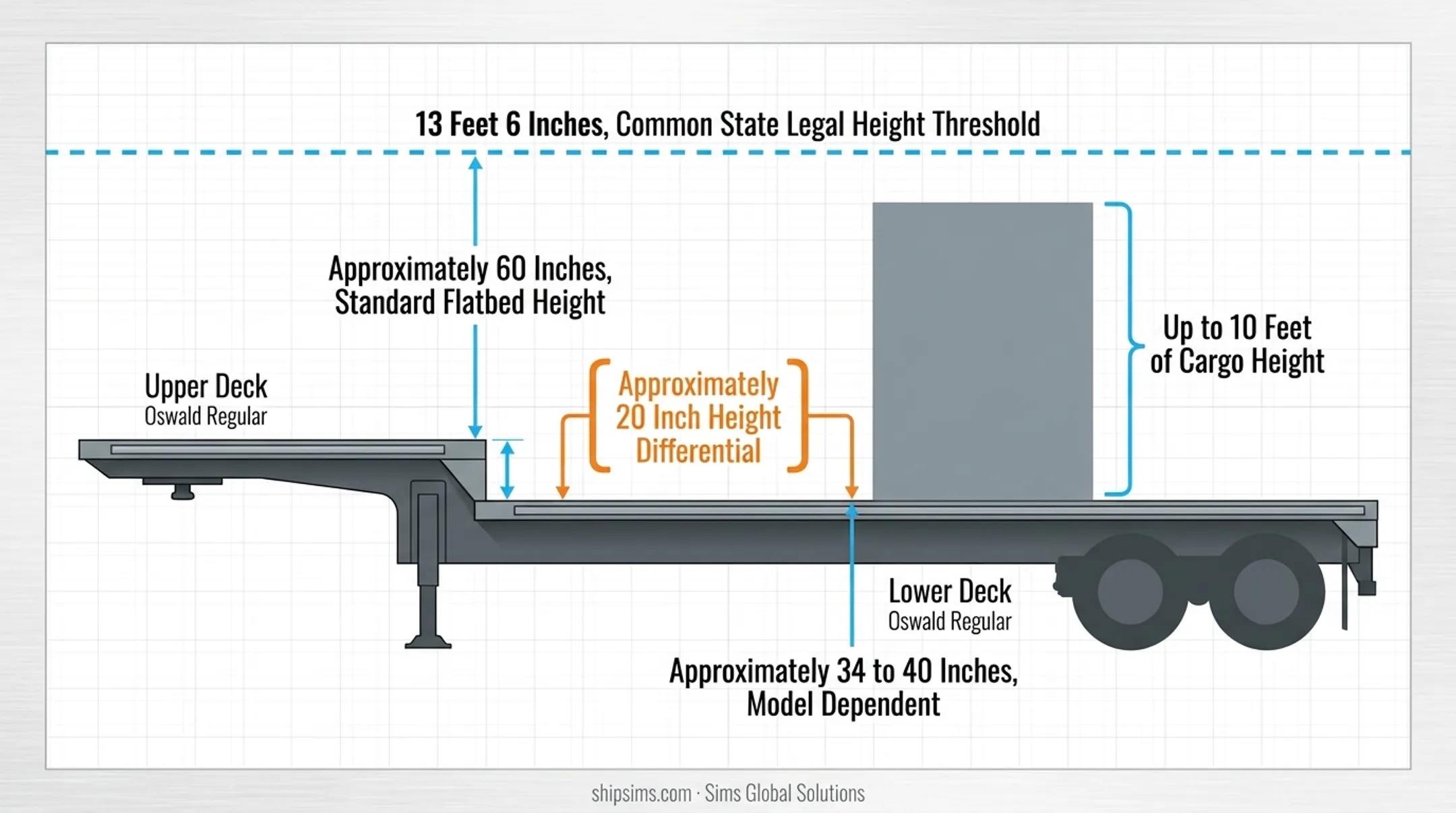

Deck Heights: Upper vs. Lower
This is the feature that defines a step deck trailer. The upper deck sits at roughly 60 inches off the ground, matching a standard flatbed. The lower deck drops down to somewhere around 34-40 inches, depending on the specific model.
That roughly 20-inch differential is the entire point of the design. It's what allows cargo up to about 10 feet tall on the lower deck while total combined height stays under the common 13'6" state threshold.
Weight Capacity
Usable payload typically lands between 40,000 and 48,000 lbs, but that figure only means something once you subtract the trailer's own tare weight from the federal gross vehicle weight limit.
The federal framework breaks down like this:
| Weight Category | Federal Limit |
|---|---|
| Single axle | 20,000 lbs |
| Tandem axle (40-96 in apart) | 34,000 lbs |
| Interstate gross vehicle weight | 80,000 lbs |
These figures come from the FHWA's Bridge Formula Weights guidance, which also governs how axle spacing affects your total legal weight. A tridem configuration can raise an axle group's allowance, but it won't push you past the 80,000-lb gross ceiling without a permit.
Safe Operating Margins
Never plan a load to the exact legal maximum. It's a mistake that catches up with shippers constantly.
Why the margin matters:
- Measurement rounding on cargo can add an inch or two
- Cargo settling during transit shifts weight distribution
- Strap compression changes effective height after tie-down
Shave the margin too thin, and you're looking at DOT roadside violations, Bridge Formula penalties, or a forced route change mid-transit, none of which are cheap or fast to resolve.
Step Deck vs. Flatbed vs. Lowboy: How Dimensions Compare
Choosing the right trailer comes down to one question: does your cargo's height and weight fit the trailer's dimensional profile, or are you forcing a square peg into a round hole?
| Feature | Step Deck | Flatbed | Lowboy/RGN |
|---|---|---|---|
| Deck height | Upper 60"; lower 34-40" | ~60" flat | Well below 40", model-dependent |
| Max freight height (13'6" limit) | Up to ~10 ft on lower deck | ~8'6" | Greater vertical envelope |
| Length | 48/53 ft | 48/53 ft | Model-dependent, often shorter |
| Width | 102 in | 102 in | Model-dependent |
| Weight capacity | 40,000-48,000 lbs | Similar range | 40,000+ lbs, scales to heavy equipment loads |
| Permit triggers | State height limit, 102" width, weight/axle rules | Same triggers, hit sooner due to lower height ceiling | Height/weight review standard for heavy equipment |

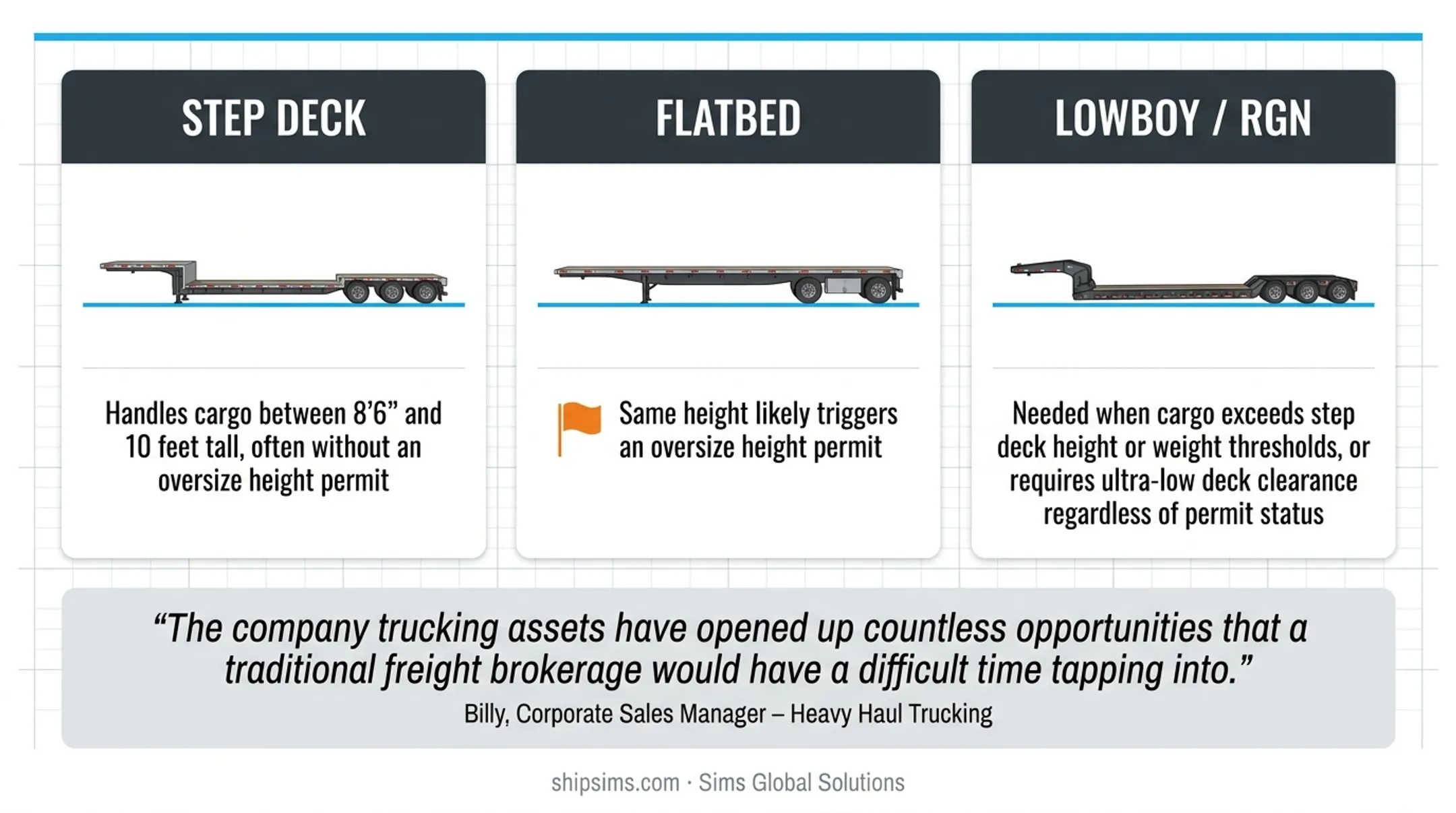

When step deck wins: cargo between roughly 8'6" and 10 feet tall. On a flatbed, that same load would likely need an oversize height permit. On a step deck, it often doesn't.
When you need a lowboy or RGN instead: cargo that exceeds step deck height or weight thresholds, or that requires an ultra-low deck clearance regardless of permit status.

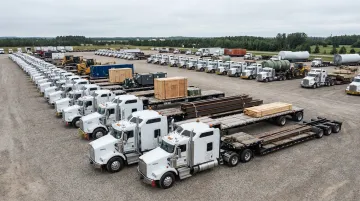

Matching cargo to the right trailer is easier with someone who's made this call before. Sims Global Solutions' heavy haul trucking division operates its own fleet across step deck, flatbed, and lowboy/RGN equipment.
As Billy, Corporate Sales Manager – Heavy Haul Trucking, puts it: "The company trucking assets have opened up countless opportunities that a traditional freight brokerage would have a difficult time tapping into." That owned-asset access means fewer guesses when matching cargo dimensions to the correct equipment.
How Dimensions Impact Compliance, Permits, and Load Planning
Dimensions on a spec sheet double as trigger points for permits, escorts, and route restrictions. Cross a threshold, and the cost of the shipment changes.
Height triggers:
- Exceeding your state's total height limit (commonly 13'6", though this varies) requires an oversize permit
- Some permits mandate escort vehicles
- Escort requirements often force route restrictions that add both time and cost
Weight triggers:
- Exceeding axle or gross weight limits risks Federal Bridge Formula violations
- Violations bring fines and can force axle reconfiguration mid-shipment
- Permit approval can take longer when weight distribution requires custom axle spacing
Two mistakes shippers make constantly:
- Treating "up to 10 feet" as a nationwide guarantee. It isn't. Some states enforce stricter local height limits that override the federal default, and there's no single federal vehicle-height law, only state-level rules that typically fall between 13'6" and 14 feet.
- Forgetting to add actual cargo height on top of deck height. A 40-inch lower deck plus 9 feet of cargo isn't automatically compliant. You have to run the full math against your specific state's limit before booking.
Conclusion
Step deck trailer dimensions govern what you can legally haul. They're not a flexible guideline you can round in your favor. Deck height, length, width, and weight capacity determine whether a load needs a permit, which routes are open to it, and what the shipment ultimately costs.
Published spec sheets are a starting point. Real-world verification, checked against your cargo and your route's state rules, is what keeps a shipment compliant.
If you're planning a step deck move and want that verification handled by people who've done it before, Sims Global Solutions can help. Our heavy haul trucking team works across step deck, flatbed, and lowboy/RGN equipment nationwide, matching trailer specs to cargo without guesswork.
Frequently Asked Questions
What is a step deck truck?
A step deck truck is a two-level flatbed trailer with a higher front deck and a lower rear deck. The height difference lets it haul taller freight without exceeding standard legal height limits.
Which is better, a step deck truck or a flatbed?
It depends on cargo height. Flatbeds suit standard-height freight up to about 8'6", while step decks handle taller loads, up to roughly 10 feet, without triggering extra permits.
How much weight can a step deck truck carry?
Capacity typically runs 40,000 to 48,000 lbs, depending on axle configuration and trailer material. That figure comes from subtracting the trailer's tare weight from the federal 80,000-lb gross weight limit.
What is the average cost of a step deck truck?
Cost varies by material (steel or aluminum) and condition (new or used); aluminum decks cost more upfront but weigh less on the road. Check current dealer listings for accurate pricing.
What's the difference between a step deck and a drop deck trailer?
These are two names for the same trailer type. "Drop deck" is sometimes also used to describe double-drop trailers, which have an additional, even lower section for extra clearance.
How tall can a load be on a step deck trailer?
Cargo on the lower deck can typically reach up to about 10 feet while keeping total trailer-plus-cargo height under the 13'6" limit common in most states. Always confirm the specific limit for your route before booking.
