Reefer trailer specs aren't one-size-fits-all. Length, interior clearance, insulation thickness, and payload capacity shift depending on the trailer type and manufacturer, and those differences determine how much product actually fits and how it needs to be secured.
This guide breaks down standard reefer trailer length, width, height, interior clearance, tare weight, and payload limits, then covers how to match the right trailer to your specific shipment.
Key Takeaways
- Reefer trailers span 28, 48, and 53 ft, with 53 ft standard for long-haul freight
- Width stays 102 in exterior, narrowing to roughly 97-98 in inside due to insulation
- Height caps near 13 ft 6 in, the typical state oversize-permit threshold
- GVWR for 53 ft trailers runs about 68,000 lbs, separate from the 80,000 lb federal cap
- Insulation thickness shifts by duty type, directly affecting usable interior space
What Do Reefer Trailer Dimensions Actually Mean?
Reefer trailer dimensions cover the exterior and interior length, width, height, and weight ratings that determine how much cargo a trailer can physically and legally carry. They function as two things at once: a design specification set by the manufacturer, and an operating constraint that shippers and carriers respect every time they plan a load.
Exterior dimensions govern road legality, dock clearance, and parking. the same numbers that appear on permits and DOT paperwork.
Interior dimensions govern actual cargo fit. This is the number that matters when calculating pallet positions or headroom for hanging product.
The gap between the two comes down to insulation: a 53 ft reefer built by Hyundai Translead measures roughly 102.36 in wide on the outside, but only about 97.4 in wide inside, per Hyundai's ThermoTech spec sheet. That's nearly 5 inches lost to sidewall insulation alone.
Reefer unit placement at the nose eats into usable length too, so the published "trailer size" is always somewhat bigger than the space you actually load into.
Getting this distinction right matters for:
- Accurate load planning and pallet counts
- Carrier selection based on actual cargo capacity
- Avoiding overweight or oversize penalties at weigh stations
Skip this step, and you're guessing at capacity until the trailer shows up at the dock.
Reefer Trailer Length, Width & Height: The Standard Range
Reefer trailer size follows a handful of industry-standard length classes, paired with maximum exterior dimensions that keep trailers road-legal across state lines.
Length Options

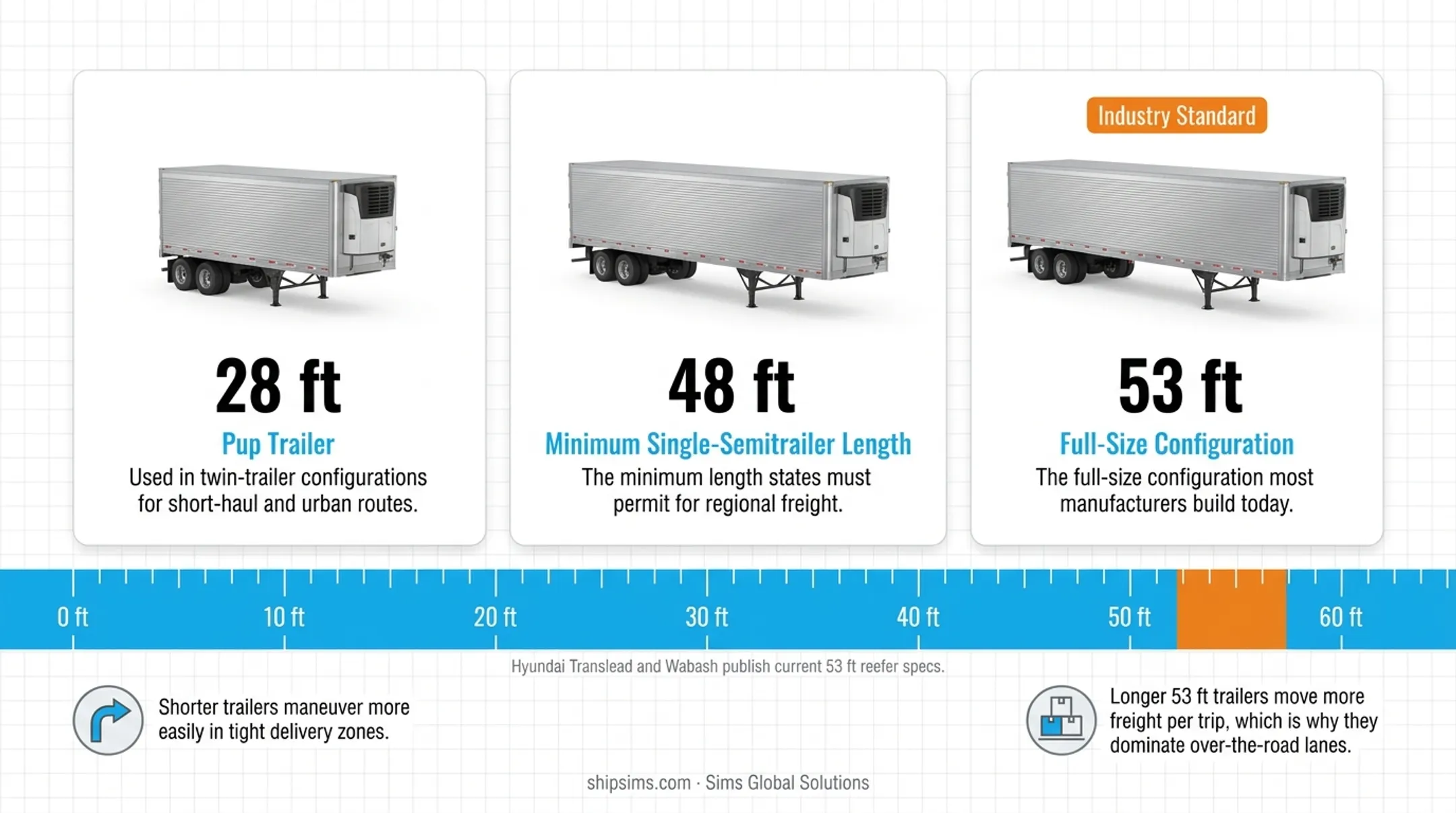

Reefer trailers typically come in three length classes:
- 28 ft "pup" trailers - used in twin-trailer configurations for short-haul and urban routes
- 48 ft trailers - the minimum single-semitrailer length states must permit for regional freight
- 53 ft trailers - the full-size configuration most manufacturers build today
Both Hyundai Translead and Wabash publish current 53 ft reefer specs, and trade press consistently describes 53 ft as the standard for long-haul refrigerated freight. Shorter trailers maneuver more easily in tight delivery zones. Longer 53 ft trailers move more freight per trip, which is why they dominate over-the-road lanes.
Width & Interior Clearance
Federal regulations cap commercial vehicle width at 102 inches (8.5 ft) on the National Network. Every reefer built for interstate hauling is designed around that ceiling.
Interior width tells a different story:
| Model | Exterior Width | Interior Width |
|---|---|---|
| Hyundai ThermoTech 53 ft | 102.36 in | 97.4 in |
| Wabash Acutherm EcoNex 53 ft | 102.375 in | 97.375 in |
That roughly 5-inch gap comes entirely from insulation. Add thicker sidewalls for deep-frozen duty, and interior width shrinks further.
Height Specifications
There's no federal height limit for commercial trailers. Height thresholds are set state by state, and 13 ft 6 in has become the common benchmark. That's the point where states like Iowa and Massachusetts require an oversize permit. Most manufacturers build to that ceiling to keep trailers permit-free nationwide.
Interior height often comes in lower than shippers expect. Hyundai's ThermoTech lists 105.5 in inside; Wabash's Acutherm EcoNex runs 104.6-104.75 in depending on front or rear measurement. Both sit under 106 inches.
High-cube reefer configurations exist for shippers needing extra vertical clearance, but they typically trade off against reefer unit efficiency. Shippers should confirm specifications with their carrier before choosing one.
Reefer Trailer Weight Specs: Tare Weight, Payload & GVWR
Weight specs matter as much as physical size. Get this wrong, and a truck that looks like it has room can still put you over the federal weight limit before it leaves the yard.
Tare Weight and Empty Trailer Weight
Tare weight, the trailer's weight with no cargo, varies by manufacturer. Hyundai's ThermoTech lists an 11,950 lb standard weight, excluding the refrigeration unit.
Add the reefer cooling unit itself, which typically runs close to 2,000 lbs. Total empty weight for a fully equipped 53 ft reefer lands somewhere near 14,000 lbs, though exact figures shift with insulation package, axle type, and floor material.
Trailer GVWR
Current 53 ft reefer models from Hyundai and Wabash both carry a 68,000 lb trailer GVWR. That's the manufacturer's rating for the trailer alone, not the combined truck-and-trailer weight you're actually limited to on the road.
The 80,000 lb Federal Ceiling

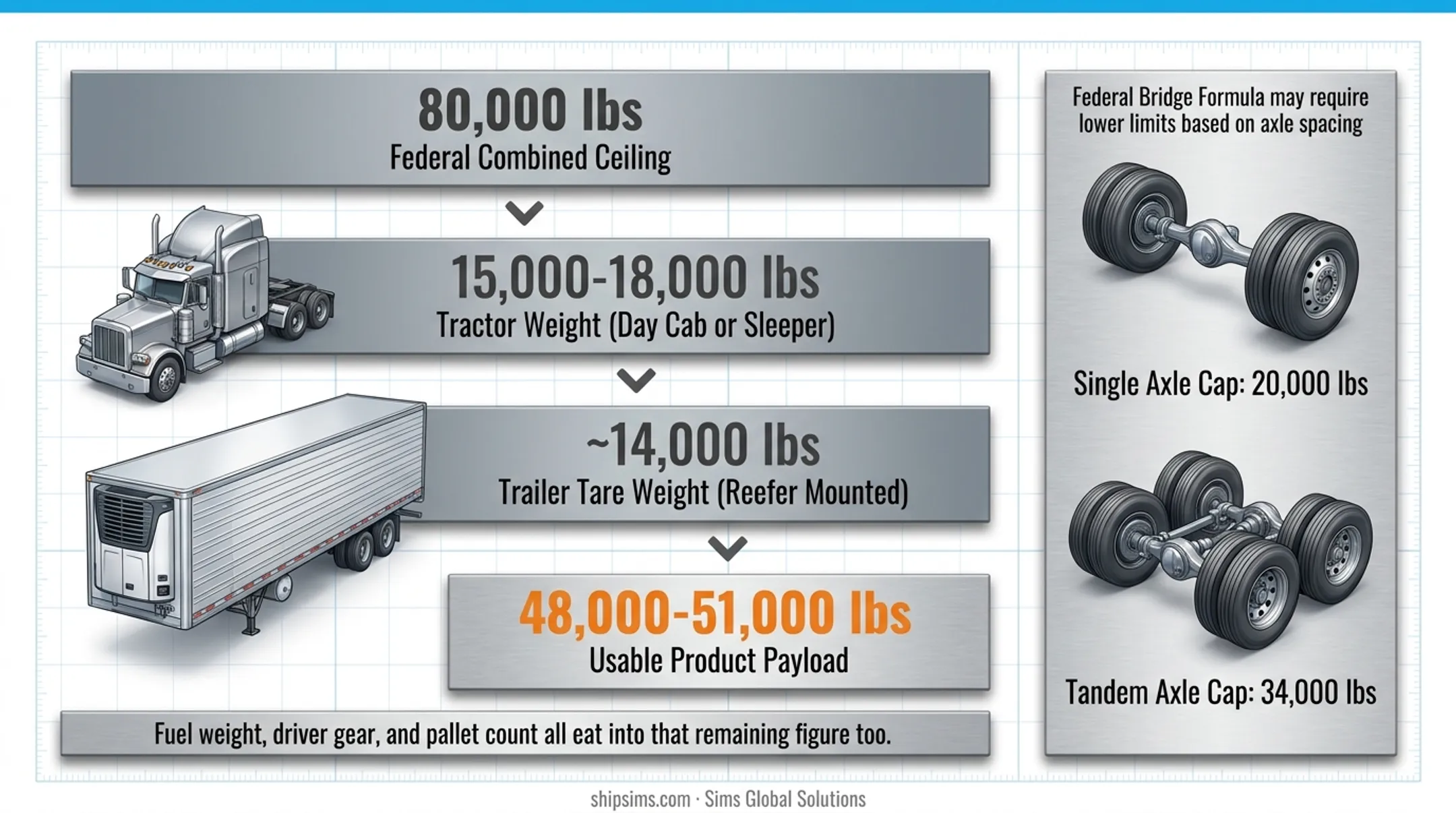

Federal rules cap combined gross vehicle weight (tractor plus trailer plus cargo plus fuel) at 80,000 lbs on the Interstate system, unless the Federal Bridge Formula requires something lower based on axle spacing. Single axles are capped at 20,000 lbs; tandem axles at 34,000 lbs.
Here's how that plays out on a real load:
- Start at 80,000 lbs - the federal combined ceiling
- Subtract tractor weight - typically 15,000-18,000 lbs for a day cab or sleeper
- Subtract trailer tare weight - roughly 14,000 lbs once the reefer unit is mounted
- What's left is usable product payload - often landing in the 48,000-51,000 lb range
That gap is exactly why shippers get burned assuming a fixed payload number applies to every load. Fuel weight, driver gear, and pallet count all eat into that remaining figure too.
Cutting Tare Weight for More Payload
Manufacturers keep chasing lighter trailers, since every pound saved in tare weight is a pound of extra product payload. Common approaches include:
- Aluminum or composite panel construction instead of steel
- Lightweight brake and suspension components
- Composite sills and furring strips instead of wood, which also resist moisture-related weight gain
Great Dane notes that moisture intrusion in older wood-based floors can add up to 1,000 lbs over 5-10 years, steadily reducing payload capacity long after the trailer left the factory floor.
How Insulation Type Affects Interior Space and Capacity
Insulation thickness is the hidden variable behind every interior dimension in this guide. It's also the spec that shifts most based on what you're hauling.
Wabash's current Acutherm EcoNex build uses 2-inch sidewall insulation paired with 4-inch insulation at the nose, roof, and floor. That heavier nose and roof package handles long-haul temperature swings better than a uniform thin-wall design.
Great Dane makes a similar point from the product side: produce loads generally need less insulation than something like ice cream, which has to hold a colder, more stable range for the entire haul.
What this means for capacity:
- Thicker insulation protects sensitive product, but it eats into interior width and height
- A trailer built for deep-frozen goods typically has less usable interior space than one built for standard produce runs
- There's no fixed rule for exactly how many inches you lose per inch of insulation; it varies by manufacturer
Multi-Temp Options
Shippers hauling mixed loads, frozen on one end, refrigerated on the other, don't have to settle for two separate trailers:
- Utility's 3000R Multi-Temp line uses a CenterSeal partition to create separate temperature zones in one trailer
- Great Dane's Everest can be configured with up to three temperature-controlled compartments plus an ambient section
These setups let one trailer handle a produce order and a frozen order on the same run, without permanently sacrificing capacity to a fixed insulation package.
Matching Reefer Trailer Dimensions to Your Shipment Needs

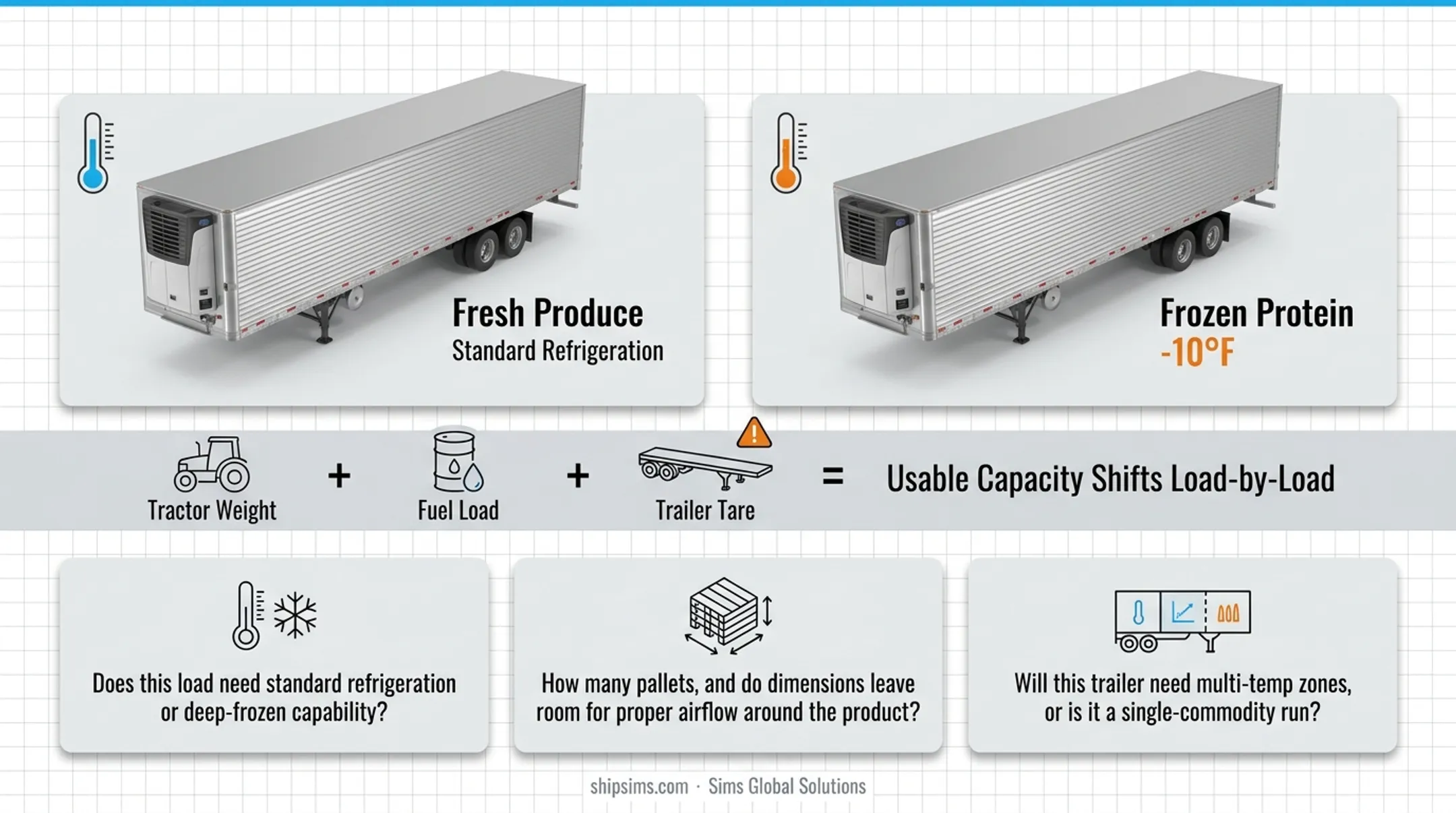

Before locking in a trailer length or insulation spec, confirm three things: product type, required temperature range, and pallet count. A trailer sized and insulated for fresh produce won't necessarily hold up for a frozen protein load running at -10°F.
A common mistake: assuming published payload capacity applies no matter what. In reality, usable capacity shifts load-by-load. Tractor weight, fuel load, and trailer tare all factor into the math before you know how much product you can actually load.
A few questions worth answering before you book:
- Does this load need standard refrigeration or deep-frozen capability?
- How many pallets, and do dimensions leave room for proper airflow around the product?
- Will this trailer need multi-temp zones, or is it a single-commodity run?
Getting these answers wrong after the trailer's already en route is expensive and slow to fix.
This is where working with a broker that isn't locked into one fleet pays off. Sims Global Solutions doesn't own reefer trailers. Our carrier network and multi-modal freight expertise mean we can match shippers to equipment that fits their specific dimension and temperature requirements.
This means shippers don't need to own or lease trailers themselves. Real-time tracking and a dedicated operations team keep visibility on the load from pickup through delivery, so specs get confirmed before the trailer shows up, not after.
Frequently Asked Questions
What sizes do reefer trailers come in?
Reefer trailers typically come in 28 ft, 48 ft, and 53 ft length classes. The 53 ft size is the industry standard for long-haul freight, since it maximizes freight volume per trip.
How wide is a 53 ft reefer trailer?
Exterior width holds at the federal maximum of 102 inches (8.5 ft). Interior width narrows to roughly 97-98 inches, about 8 ft 1 in, once sidewall insulation is factored in.
How much does a 28 ft reefer trailer weigh?
Pup trailers weigh less than 53 ft units thanks to a shorter frame and less insulated surface area. Manufacturers don't publish a standardized tare weight for 28 ft reefers, so check the exact figure with your carrier or trailer spec sheet.
How much does a 53 foot reefer trailer weigh empty?
Current 53 ft models run close to 11,950-12,000 lbs of trailer tare weight before adding the refrigeration unit. With the reefer unit mounted, total empty weight typically lands near 14,000 lbs.
What is the maximum payload capacity of a reefer trailer?
Trailer GVWR on current 53 ft reefers runs around 68,000 lbs. Actual usable payload depends on tractor weight and fuel load, since federal regulations cap the full combination at 80,000 lbs.
How tall is a reefer trailer?
Most reefers are built to a 13 ft 6 in exterior height, the common state threshold for oversize permits. Interior height typically falls between 104 and 106 inches after insulation.
