Here's the catch: there's no single "maximum pallet height" for LTL shipping. The limit depends entirely on the carrier, the trailer type, and how that carrier prices cubic space. A number that works fine with one carrier might get your freight bounced by another.
This guide breaks down the real range of allowable pallet heights, why that number shifts from carrier to carrier, how height affects your freight bill, and what to do when your shipment runs tall.
Key Takeaways
- Pallet height limits vary by carrier, typically capping between 84 and 99 inches.
- Freight too tall to stack often gets billed as if it occupies two pallet positions
- Exceeding the limit risks refusal at pickup, reclassification, or added charges.
- Confirm height limits with your carrier before tendering, especially above 75 inches.
What Counts as "Pallet Height" in LTL Shipping
Pallet height isn't the height of the boxes stacked on top of a pallet. It's the full measurement from the floor to the highest point of the load — pallet included.
The National Motor Freight Traffic Association instructs shippers to measure the greatest straight-line length, width, and height of the handling unit as tendered. That includes any projections like straps, wrap, or uneven edges, meaning the pallet base itself counts toward your total.
A standard 48x40 wood block pallet, per CHEP's published specification, runs about 5.6 inches tall on its own. So if a carrier's stated maximum is 96 inches, your actual usable cargo height is closer to 90 inches once you subtract the base.
Once you've adjusted for that base height, it's worth knowing who actually sets the limit you're measuring against. Pallet height limits are carrier-set operational policies, not federal regulations. Unlike some weight rules that fall under FMCSA and FHWA oversight, there's no government agency dictating how tall a pallet can be for LTL freight. Each carrier decides based on its own equipment and network.

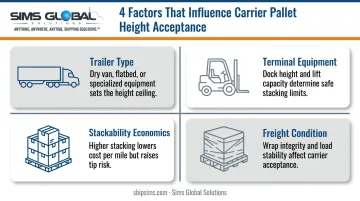

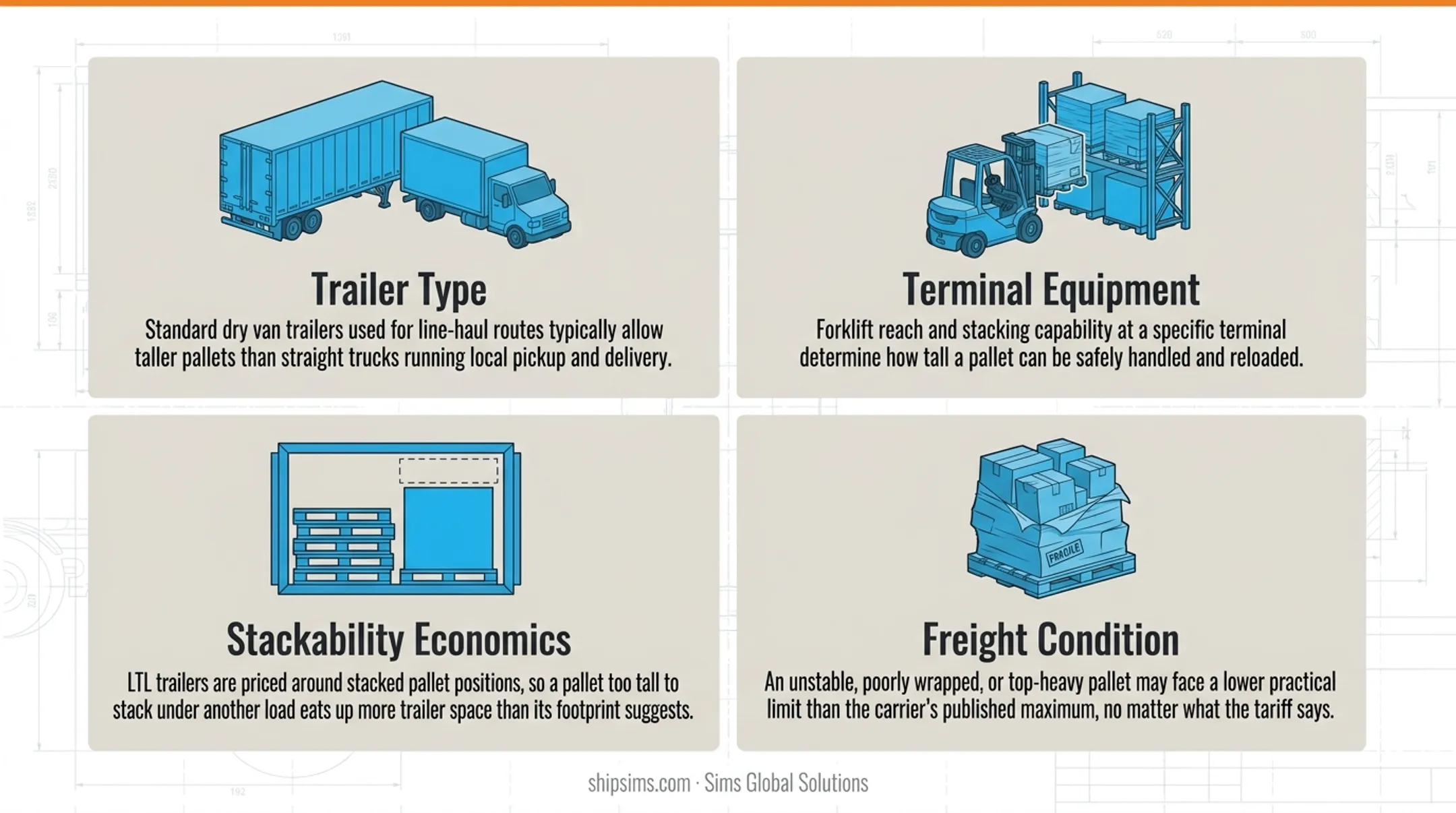

Factors That Influence the Height a Carrier Will Accept
Several variables shape what a carrier will actually allow on a given lane:
- Trailer type — standard dry van trailers used for line-haul routes typically allow taller pallets than straight trucks running local pickup and delivery
- Terminal equipment — forklift reach and stacking capability at a specific terminal determine how tall a pallet can be safely handled and reloaded
- Stackability economics — LTL trailers are priced around stacked pallet positions, so a pallet too tall to stack under another load eats up more trailer space than its footprint suggests
- Freight condition — an unstable, poorly wrapped, or top-heavy pallet may face a lower practical limit than the carrier's published maximum, no matter what the tariff says
Maximum Pallet Height Range Across LTL Carriers
Because there's no NMFC-mandated height standard, "the maximum" is really a range that each carrier sets independently and enforces at the terminal level.
Standard Height Range Most Carriers Allow
Looking at published carrier tariffs gives a clearer picture than generic online estimates:
| Carrier | Published Limit | Context |
|---|---|---|
| Saia | 84 inches | Pallet-rate program condition, per Saia's Rules Tariff 170-D |
| Old Dominion | 99 inches | Applies to a 48x48x99-inch pallet-rate program, including overhang, per ODFL's 4848 Rules tariff |
That gives a realistic spread of 84 to 99 inches among two major national carriers, with figures tied to specific pallet-rate programs rather than a blanket network maximum. This range generally applies to stable, stackable freight. Irregular or non-stackable loads often face a lower practical ceiling regardless of what's printed in the tariff.
Where Height Thresholds Trigger Extra Charges
Height limits and billing thresholds aren't the same thing, and mixing them up is where shippers get caught off guard.
The NMFTA's LTL packaging guidance recommends not stacking pallets above 84 inches, while flagging that individual carriers may impose their own restrictions on top of that. Meanwhile, several major carriers use height as a trigger for cubic capacity billing well before that point:
- XPO applies a minimum billing dimension of 96 inches for any article with an actual height of 75 inches or greater
- Southeastern Freight Lines deems freight at a 96-inch cube when a unit can't be topped due to instructions, packaging, or a height of 50 inches or more
These aren't hard physical caps. They're cubic-capacity conventions that determine how much space your freight is billed for, separate from whether it physically fits.
Safe Margin and Why It Exists
Build in a few inches of margin under the published max. Wrap bulges, uneven loading, and simple measuring error can eat that buffer fast.
Run right at the limit, and a 1-2 inch miscalculation can mean:
- Refusal at the dock before the truck even leaves
- A costly reclassification once the freight hits a terminal scale and measurement station
A pallet measured at "exactly 84 inches" in the warehouse rarely stays exactly 84 inches once it's wrapped, strapped, and loaded onto a dock plate.
How Pallet Height Affects LTL Pricing and Freight Class
Height doesn't just determine whether your freight gets accepted. It directly shapes what you pay.

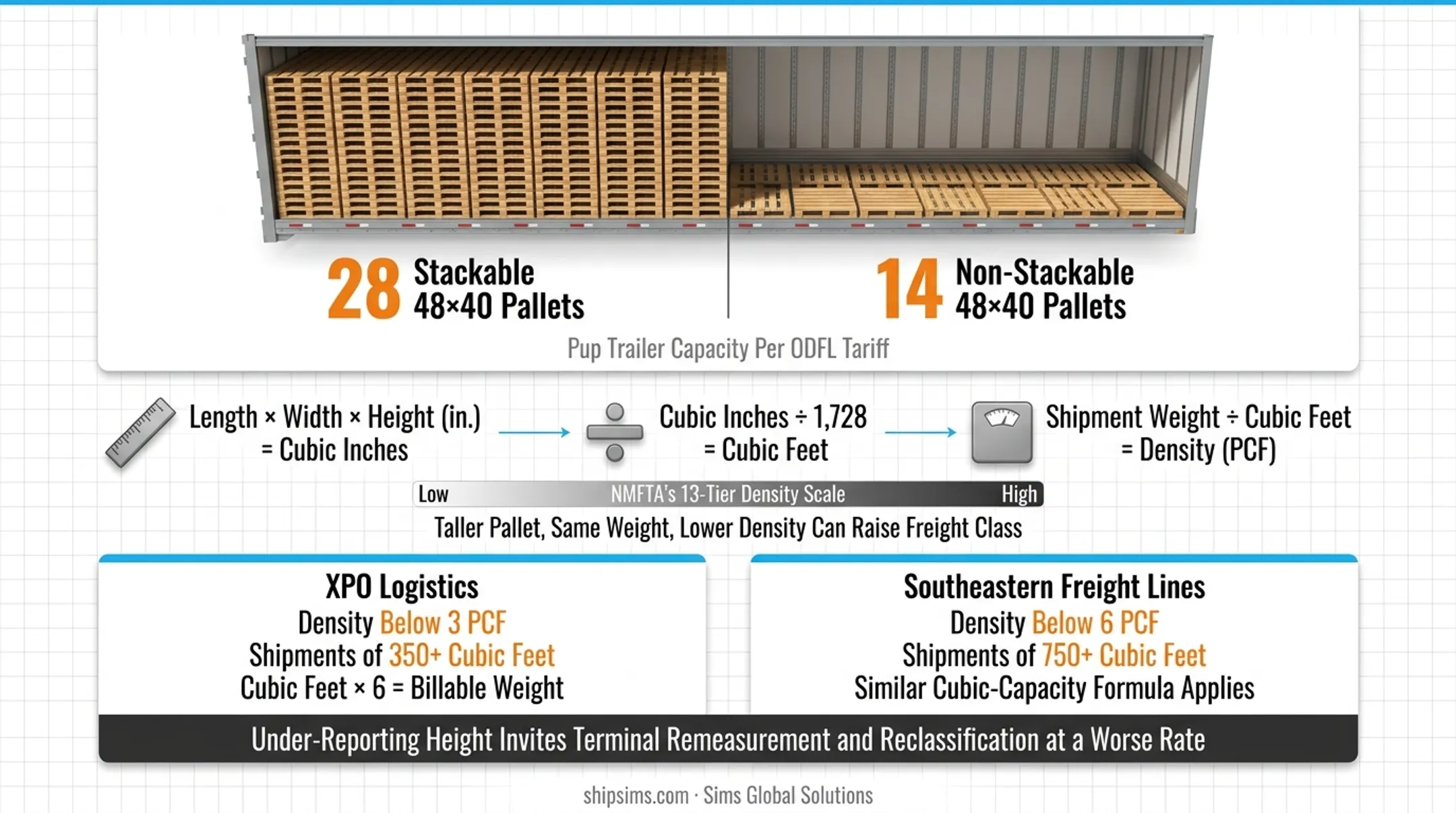

Non-stackable pallets often need double the trailer space they appear to require. ODFL's own tariff illustrates this: a pup trailer can hold 28 stackable 48x40 pallets, but only 14 non-stackable ones. That's a real capacity difference, and carriers price accordingly.
Height also feeds directly into NMFC density calculations. The formula is straightforward:
- Multiply length x width x height (in inches) to get cubic inches
- Divide by 1,728 to get cubic feet
- Divide shipment weight by cubic feet to get density (pounds per cubic foot)
A taller pallet, with weight and footprint held constant, produces more cubic feet and lower density. Under NMFTA's current 13-tier density scale, that shift can bump a shipment into a more expensive freight class without the weight changing at all.
Carriers also apply direct cubic-capacity conventions for large, low-density shipments:
- XPO multiplies cubic feet by 6 to construct billable weight when density falls below 3 pounds per cubic foot on shipments of 350 cubic feet or more
- Southeastern Freight Lines applies a similar formula at 750 cubic feet with density under 6 PCF
These conventions show why the numbers on your bill of lading carry real financial weight. Under-reporting height to make freight look more compact backfires for this reason: terminal staff remeasure oversized-looking freight routinely, and a mismatch triggers reclassification after the fact, usually at a worse rate than if you'd reported accurately upfront.
Measuring and Documenting Pallet Height Correctly
Getting this right at the dock saves headaches at the terminal.
Measure to the single highest point of the freight — not just the top of the visible boxes. That includes:
- Straps or banding that rise above the load
- Wrap that bulges or peaks unevenly
- Any protrusions from packaging or the product itself
Before the driver arrives, photograph every pallet with a visible measuring reference, like a tape measure or marked wall. Record the exact height on the bill of lading. This single habit resolves most height disputes before they start, because you have documented proof of what left your dock.
Confirming the carrier's exact limit before you tender is the harder part, since that number varies by lane, trailer type, and terminal. This is where working with a broker pays off.
Sims Global Solutions maintains direct relationships across more than 70 national and regional LTL carriers. That network means we check the height threshold for your specific lane before booking, not after a terminal refuses the shipment.

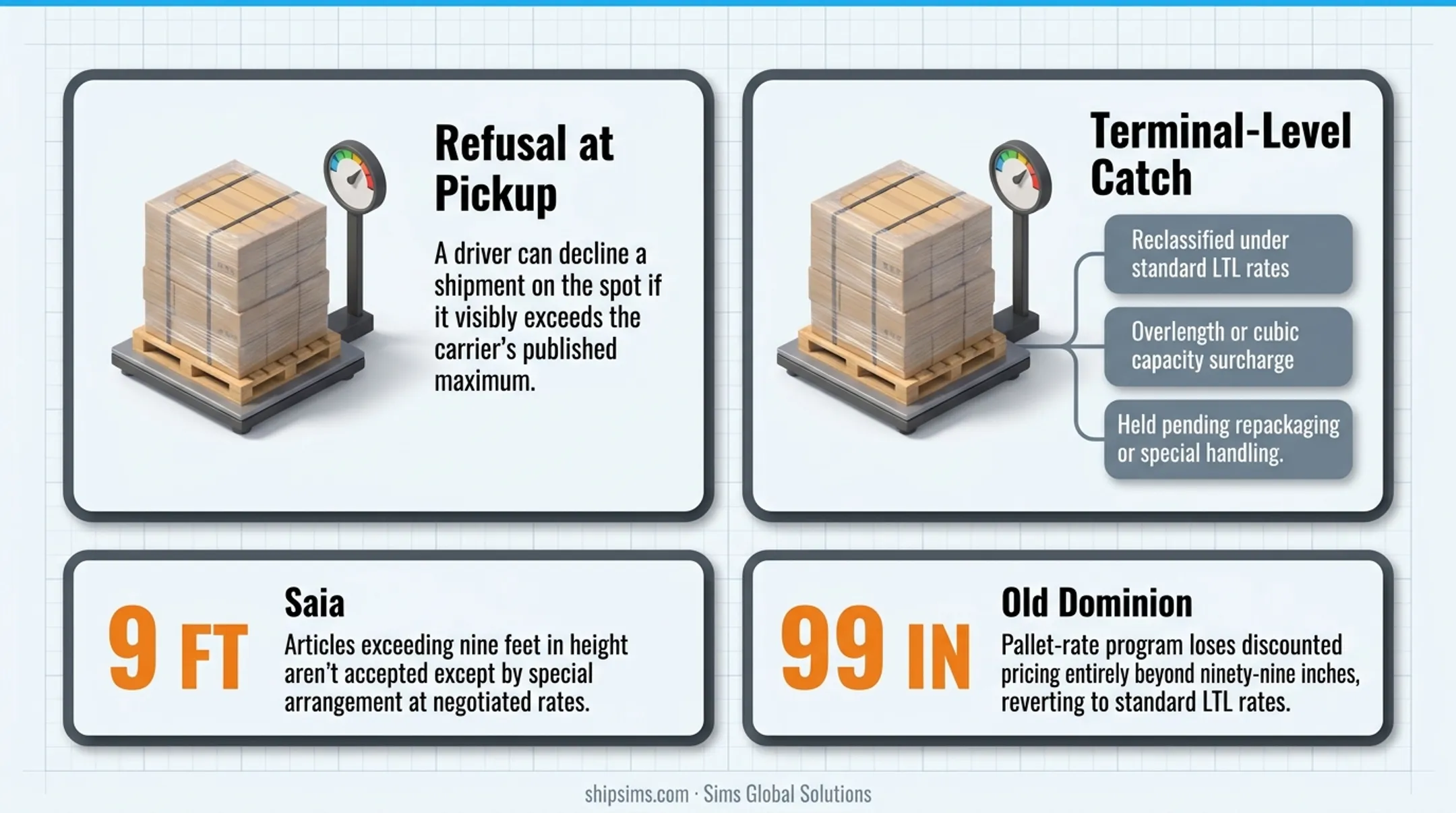

What Happens When a Pallet Exceeds the Height Limit
There are two points where an over-height pallet gets caught, and neither is pleasant.
Refusal at pickup. A driver can decline a shipment on the spot if it visibly exceeds the carrier's published maximum. This happens more often than shippers expect, especially with local drivers running straight trucks with tighter clearance.
Terminal-level catch. Freight that slips past pickup but gets flagged as oversized at a terminal faces a few possible outcomes:
- Faces reclassification under standard LTL rates instead of a discounted pallet-rate program
- Incurs an overlength or cubic capacity surcharge based on dimensional weight
- Remains held pending repackaging or a special handling arrangement
Saia's tariff, for instance, states that articles exceeding 9 feet in height aren't accepted except by special arrangement at negotiated rates. Old Dominion's pallet-rate program loses its discounted pricing entirely if a shipment exceeds 99 inches, reverting to standard LTL rates instead.
Common Misconceptions About Height Limits
A few beliefs keep tripping shippers up:
- "96 inches is the industry standard." It's not. That figure shows up as a cubic-capacity billing convention at several carriers, not a universal acceptance limit.
- "Staying under the max means no extra charge." Many carriers apply stackability or cubic capacity surcharges well before the hard limit, sometimes at heights as low as 50-75 inches depending on the carrier.
- "Pallet height is federally regulated." It isn't, unlike certain weight rules. Height limits are set entirely by individual carrier policy and enforced at the terminal.
Frequently Asked Questions
How tall can a pallet be for LTL?
Most carriers cap pallet height somewhere between 84 and 99 inches, including the pallet base itself. The exact figure depends on the carrier and trailer type, so confirm it before booking.
What is the maximum pallet height for LTL shipping?
There's no single industry-wide maximum. Treat 75-84 inches as the zone where stackability or cubic capacity surcharges commonly begin, even if the hard limit is higher.
What happens if my LTL pallet is too tall?
You risk refusal at pickup, reclassification at the terminal, or an overlength/cubic capacity surcharge. Some carriers also strip pallet-rate discounts entirely for oversized freight.
Does a tall pallet cost more to ship LTL?
Often, yes. Pallets too tall to stack can be billed as occupying two pallet positions, and low-density, tall freight may be rated under cubic capacity pricing instead of standard class rates.
Is pallet height measured with or without the pallet itself?
With it. Height is measured from the floor to the highest point of the load, including the pallet base, which typically adds 5-6 inches on its own.
Can I get an exception for a pallet taller than the standard limit?
Some carriers allow exceptions with advance notice and negotiated rates. Working with a broker with broad carrier relationships, like Sims Global Solutions, helps secure that approval before the shipment ships.
