One checkbox at booking would have fixed the entire problem: liftgate service.
If you ship LTL freight to locations without dock access — or if you're not sure whether your locations qualify — this guide covers what liftgate delivery actually is, when you need it, what it costs, and how to avoid the billing surprises that catch shippers off guard.
Key Takeaways
- A liftgate is a hydraulic platform on the rear of a freight truck that moves cargo between truck-bed height and ground level
- Liftgate delivery is an accessorial service — it must be requested at booking, not assumed
- Locations without a loading dock or forklift require it
- Published carrier fees range from $75 to $625 per shipment, varying by weight and carrier
- Missing the request at booking can trigger re-delivery fees that exceed the liftgate charge itself
What Is Liftgate Delivery?
The Equipment
A liftgate is a powered platform — hydraulic on most commercial units — mounted to the rear of a freight truck. Its job: raise cargo from ground level to truck-bed height during pickup, and lower it back down at delivery. WALTCO describes it as a platform that transitions cargo between the truck bed and the ground; Estes calls it a power-operated tailgate capable of lifting a load from street level to the trailer.
The Service
The liftgate itself is equipment. Liftgate delivery is the accessorial service that ensures a liftgate-equipped truck shows up at your location. These are two different things — and the distinction matters when you're booking freight.
As ODFL classifies it, liftgate is a specialized equipment charge for locations without dock access. It sits outside standard LTL service and must be explicitly requested.
Where It Fits in LTL Shipping
Liftgate service is most common in LTL (less-than-truckload) and final-mile deliveries, where freight moves to locations that weren't designed with commercial receiving infrastructure in mind. It's classified as an accessorial — meaning it's an add-on to your base freight rate, not included by default.
Common scenarios where liftgate applies:
- Deliveries to retail storefronts, warehouses, or offices without a loading dock
- Residential or construction site drop-offs
- Any location where a forklift or dock leveler isn't available on-site
Liftgate Equipment Specs Worth Knowing
Dimensions and capacities vary by manufacturer and model. Based on published specs from major manufacturers:
| Manufacturer | Platform Width | Platform Depth | Rated Capacity |
|---|---|---|---|
| Anthony AST Series | 80–84 in | 48–50 in | 1,500–3,500 lb |
| Tommy Gate Railgate | 89–95 in | 37–55 in | 1,600–2,000 lb |
| WALTCO HLF Series | 84 in | 60 in | 2,500–5,000 lb |
Specs vary by model — if your freight is heavy or oversized, confirm your carrier's liftgate capacity before booking.
How Does Liftgate Delivery Work?
The process is operator-controlled and follows a consistent sequence in both directions.
At Pickup
- The driver unfolds and lowers the liftgate platform to ground level
- Freight is moved onto the platform using a pallet jack or forklift
- The operator raises the platform to truck-bed height using an UP-DOWN switch
- Freight is transferred into the trailer and the gate is folded away for transit

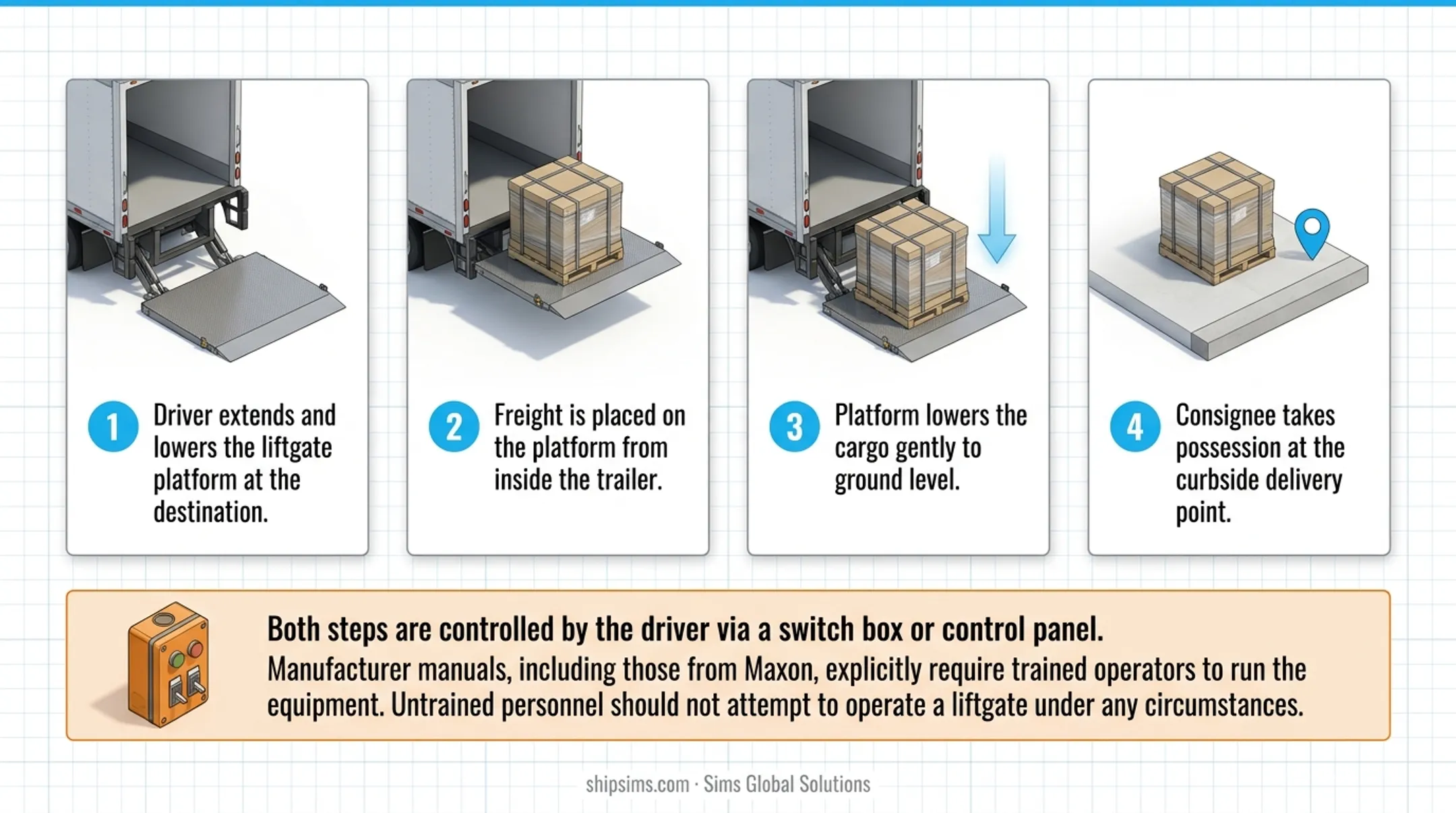

At Delivery
The sequence reverses:
- Driver extends and lowers the liftgate platform at the destination
- Freight is placed on the platform from inside the trailer
- Platform lowers the cargo gently to ground level
- Consignee takes possession at the curbside delivery point
Both steps are controlled by the driver via a switch box or control panel. Manufacturer manuals — including those from Maxon — explicitly require trained operators to run the equipment. Untrained personnel should not attempt to operate a liftgate under any circumstances.
Why Advance Booking Matters
Not every freight truck carries a liftgate. If you don't request the service at booking, the carrier may dispatch a standard truck — one that has no way to safely offload your freight without a dock on the receiving end.
Estes, for example, requires liftgate requests in writing on the bill of lading or through the online BOL's accessorial menu. Miss that step, and you're not just facing a delay — a full re-delivery charge may apply. Getting it on the BOL upfront is the only reliable way to ensure the right equipment shows up.
When Do You Need Liftgate Delivery?
The core test is simple: does the pickup or delivery location have a loading dock and mechanical unloading equipment? If the answer is no, you need liftgate service.
Common Situations That Require It
- No loading dock: Small warehouses, retail storefronts, and office buildings sit at ground level — they can't accept standard freight without a liftgate or external equipment. FedEx confirms that no dock means you need to request liftgate service.
- Residential addresses: Homes have neither docks nor forklifts. Heavy or palletized shipments — furniture, appliances, medical equipment — require liftgate service to get off the truck safely.
- Limited-access locations: ODFL classifies residences, schools, construction sites, and military facilities as limited-access. What they share: no freight-handling infrastructure on-site.
- Heavy or palletized freight: When a pallet or oversized piece exceeds what a small receiving team can safely unload by hand, liftgate service removes the risk entirely.
Industries Where Liftgate Is Routine
Certain freight categories hit these scenarios consistently:
- Furniture shipped to homes, showrooms, or retail storefronts — rarely dock-accessible
- Medical devices going to clinics or outpatient facilities that lack freight infrastructure
- Retail store deliveries where back-of-house receiving is at ground level, not dock height
- Heavy machinery destined for job sites or warehouses still under construction
Sims Global Solutions maintains direct API integrations with more than 70 LTL carriers through its SimsTrak platform, so liftgate-equipped capacity can be matched to the right lane without shippers hunting for carriers on their own.
Key Benefits of Liftgate Delivery
Reduces Injury Risk
Manual unloading of heavy freight puts real strain on receiving teams. BLS data from 2020 recorded nearly 12,000 overexertion injuries involving lifting or lowering in transportation and warehousing alone. Liftgates remove that physical demand from the equation entirely. The freight moves mechanically, not manually.
Protects Cargo
Controlled mechanical lowering is more consistent than manual handling, particularly for fragile, crated, or high-value goods. Freight that gets dropped, tilted, or mishandled during unloading often results in damage claims — and the costs that follow. Mechanical lowering cuts that exposure significantly.
Expands Where You Can Deliver
Without a liftgate, carriers are limited to locations with dock access. With one, the delivery reach expands to:
- Residential addresses and homes
- Retail storefronts without loading docks
- Construction sites and job sites
- Event venues and temporary installations
- Any location without standard freight infrastructure
For shippers serving a mix of B2B and non-dock customers, this capability removes a hard constraint from the delivery equation.
What Does Liftgate Delivery Cost?
Liftgate is billed as an accessorial fee, separate from your base freight rate. It won't appear on your quote unless you request it at the time of booking.
Published Carrier Tariff Examples
Fees are calculated by shipment weight, with carrier-specific minimums and maximums. Based on published tariffs from major LTL carriers:
| Carrier | Rate | Minimum | Maximum |
|---|---|---|---|
| Estes (Item 567) | $4.95/cwt | $75/shipment | $350/shipment |
| ODFL (Item 891) | $4.40/cwt | $105/shipment | $330/shipment |
| ABF (Item 758) | $12.00/cwt | $225/occurrence | $625/occurrence |
These are carrier-specific tariff examples, not a universal market rate. Your actual cost depends on the carrier, shipment weight, and delivery location type. Also note that other accessorials — such as residential delivery — may apply on top of the liftgate fee.

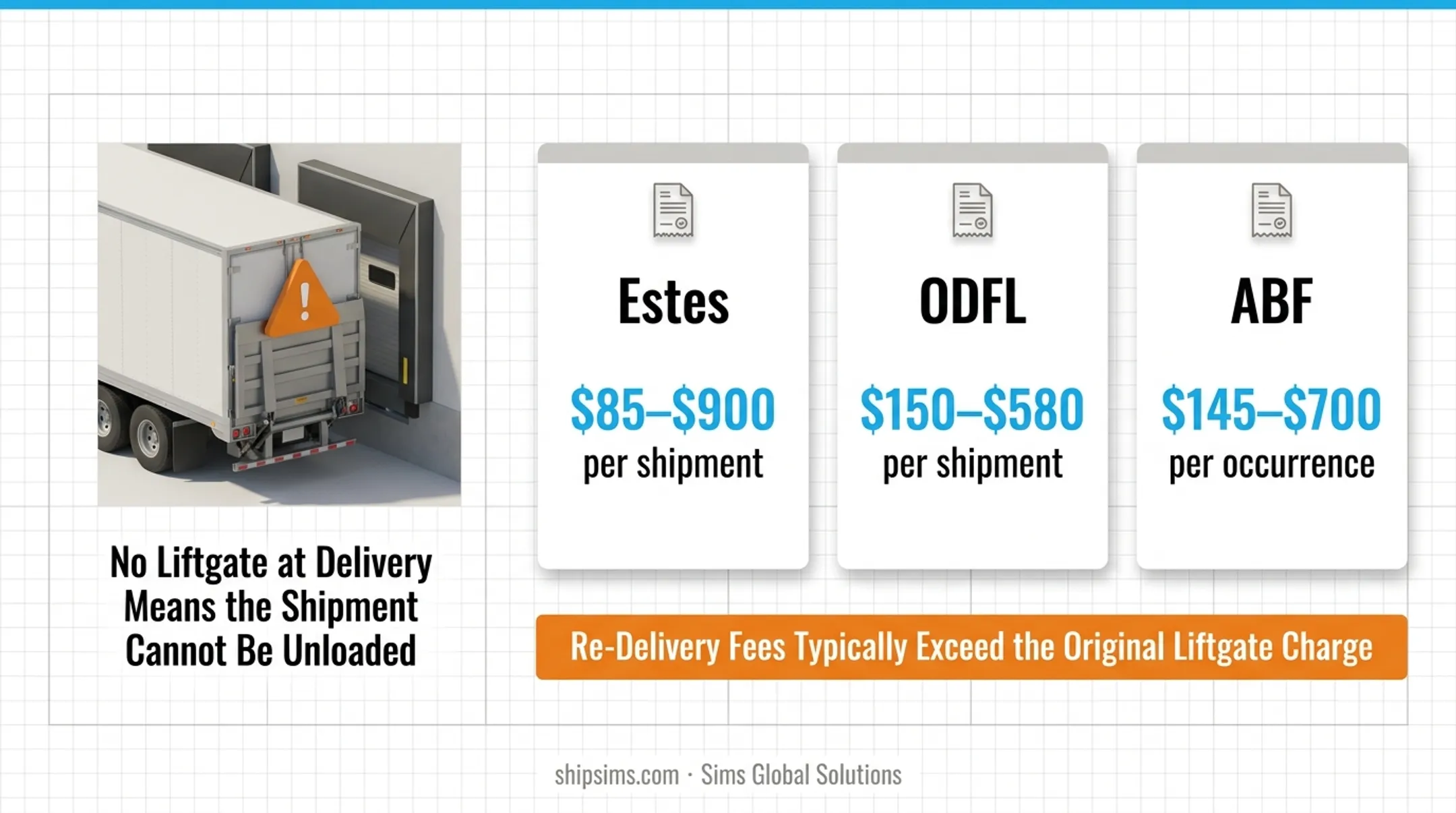

What Happens If You Skip It
If a carrier arrives without a liftgate and the location can't receive freight without one, the delivery fails. Re-delivery charges are steep:
- Estes: $85–$900 per shipment
- ODFL: $150–$580 per shipment
- ABF: $145–$700 per occurrence
In most cases, those re-delivery fees exceed what the original liftgate charge would have cost.
How to Avoid Surprise Charges
- Confirm dock access and forklift availability at both origin and destination before booking
- Declare liftgate at the time of quoting — not after the fact
- Work with a freight partner that builds accessorials into quotes from the start
Sims Global Solutions integrates directly with 70+ LTL carriers through their SimsTrak platform, which means accessorials like liftgate are built into the quote from the start — not discovered on the invoice after delivery.
Frequently Asked Questions
What does liftgate delivery mean?
Liftgate delivery is a freight service where the truck is equipped with a hydraulic platform that raises and lowers cargo between truck-bed height and ground level. It's used when no loading dock is available at the pickup or delivery location.
Do I need a liftgate for delivery?
You need liftgate service whenever the pickup or delivery location lacks a loading dock or forklift. This applies to residential addresses, retail storefronts, construction sites, and any facility where freight can't be moved directly to dock height.
How much does liftgate delivery cost?
Liftgate is billed as an accessorial fee based on shipment weight. Published carrier tariffs show minimums ranging from $75 to $225 per shipment and maximums from $330 to $625, depending on the carrier and freight details.
What is the difference between liftgate delivery and inside delivery?
Liftgate delivery moves freight from the truck to the ground (curbside only). Inside delivery is a separate accessorial that covers moving freight beyond the delivery point and into the building. Request both if you want freight brought inside.
What happens if I forget to request a liftgate?
If no liftgate is requested and the receiving location can't unload without one, the carrier may refuse delivery. That typically triggers a re-delivery charge, which runs between $85 and $700 or more per shipment at most major carriers.
How much weight can a liftgate hold?
Most commercial liftgates handle between 1,500 and 3,500 lbs, though some models (like the WALTCO HLF series) are rated up to 5,000 lbs. Always verify your carrier's liftgate capacity if your freight is near or above the 1,500-lb mark.
