Picking between them isn't just a technical detail. The wrong choice can mean extra permits, longer loading windows, or a piece of equipment that simply won't fit.
The stakes are real: U.S. trucks moved 11.27 billion tons of freight in 2024, generating $906 billion in gross freight revenue, according to ATA's American Trucking Trends 2025 report. A meaningful slice of that tonnage is oversized equipment that needs specialized trailers to move safely and legally.
This guide breaks down what separates RGN and lowboy trailers, where each one fits, and how to decide which one your next shipment actually needs.
Key Takeaways
- RGN trailers use a detachable gooseneck for front, drive-on loading.
- Lowboys have a fixed gooseneck and load equipment from the rear.
- RGN weight capacity can scale past 150,000 lbs, well beyond standard lowboys.
- Lowboys cost less to operate; RGNs simplify loading tall, self-propelled machinery.
- The right choice hinges on equipment type, load height, site access, and budget.
RGN vs. Lowboy: Quick Comparison
Here's how RGN and lowboy trailers compare across the specs that matter most for load planning.
| Factor | RGN Trailer | Lowboy Trailer |
|---|---|---|
| Loading Style | Detachable gooseneck creates a drive-on ramp | Rear-loaded; often needs ramps, forklift, or crane |
| Weight Capacity | Up to 150,000+ lbs (some models rated to 170,000 lbs) with multi-axle setups | Roughly 40,000-80,000 lbs standard; spread-axle models up to 120,000+ lbs |
| Deck Height | Typically 12-22 inches | Typically 18-24 inches |
| Well/Deck Length | 29 ft standard, extendable to roughly 50 ft on stretch models | 24-29 ft, generally fixed |
| Best For | Tall, self-propelled, or extremely heavy machinery | Shorter, non-motorized, or moderately heavy equipment |
| Cost | Higher upfront and operating cost (hydraulics, added tare weight) | More budget-friendly, simpler build |
Neither trailer is objectively "better." Each solves a different loading and clearance problem.
What Is an RGN (Removable Gooseneck) Trailer?

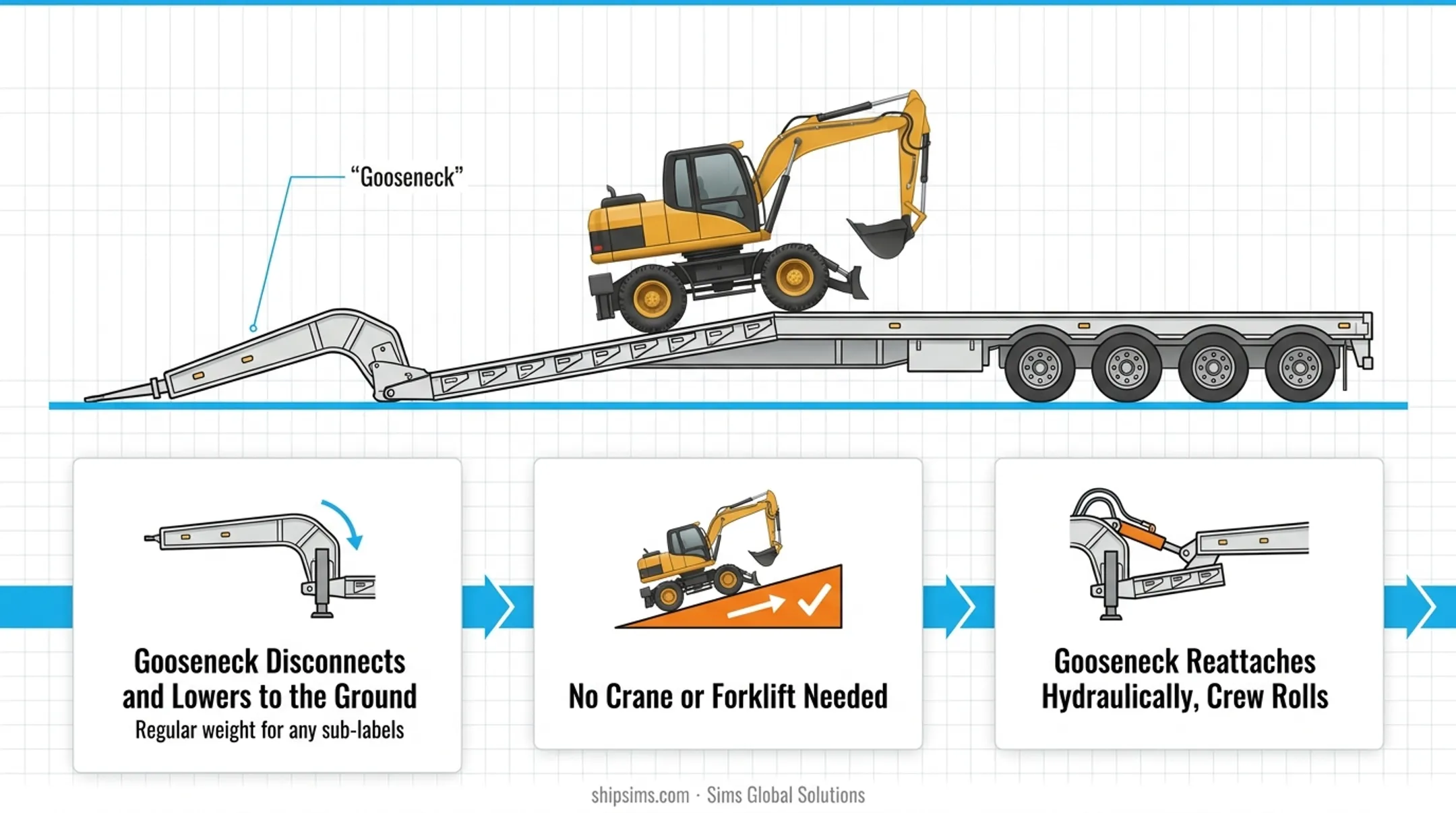

An RGN trailer gets its name from its detachable front section. The gooseneck disconnects from the main deck and lowers to the ground, creating a ramp equipment can drive straight onto, with no crane or forklift needed.
That single feature changes how a jobsite operates. Instead of scheduling lifting equipment at both ends of a haul, crews drive the machine on, reattach the gooseneck hydraulically, and roll.
How the Gooseneck System Works
Most modern RGNs use hydraulic detachment, though mechanical (pin-and-latch) versions exist too. Manufacturers like XL Specialized build hydraulic-detachable models rated from 70,000 up to 160,000 lbs, with low-profile variants reaching 170,000 lbs and deck heights as low as 12-22 inches.
Axle configurations scale with the load:
- Standard RGNs run two or three axles
- Heavier hauls add tridem or spread-axle setups
- Specialized wind-energy trailers can incorporate well beyond a dozen axles for extreme loads
Detachment method and deck design create further variation among models:
- Hydraulic detachable gooseneck (HDG): Most common for heavy equipment; one-person operation is typical
- Mechanical removable gooseneck: Simpler latch system, often lighter tare weight
- Low-profile and extendable models: Built for tall cargo or long, non-divisible loads
Use Cases of RGN Trailers
RGNs dominate industries where machinery drives itself:
- Construction: Track-type dozers, excavators, and scrapers
- Mining: Scrapers, rock beds, and drilling rigs
- Agriculture: Combines and self-propelled sprayers
- Energy: Wind blades, nacelles, and turbine towers
Because equipment can drive directly onto the deck, RGNs enable direct-to-jobsite delivery without staging lifting equipment on-site.
That capability matters most when demand spikes. Flatbed spot volume jumped more than 33% year-over-year in late March 2025, according to FTR's Spot Market Insights report. Sims Global Solutions' Heavy Haul Trucking division taps its own fleet and carrier network to keep RGN capacity available during those surges.
What Is a Lowboy Trailer?
A lowboy trailer keeps its gooseneck fixed to the frame. There's no detachment and no hydraulics involved. Instead, you get a low, sturdy deck built to carry weight while staying under height limits.
That simplicity is the point. Fewer moving parts means less maintenance, lower repair costs, and a trailer that's often cheaper to own and operate over time.
Weight and Height Capacity

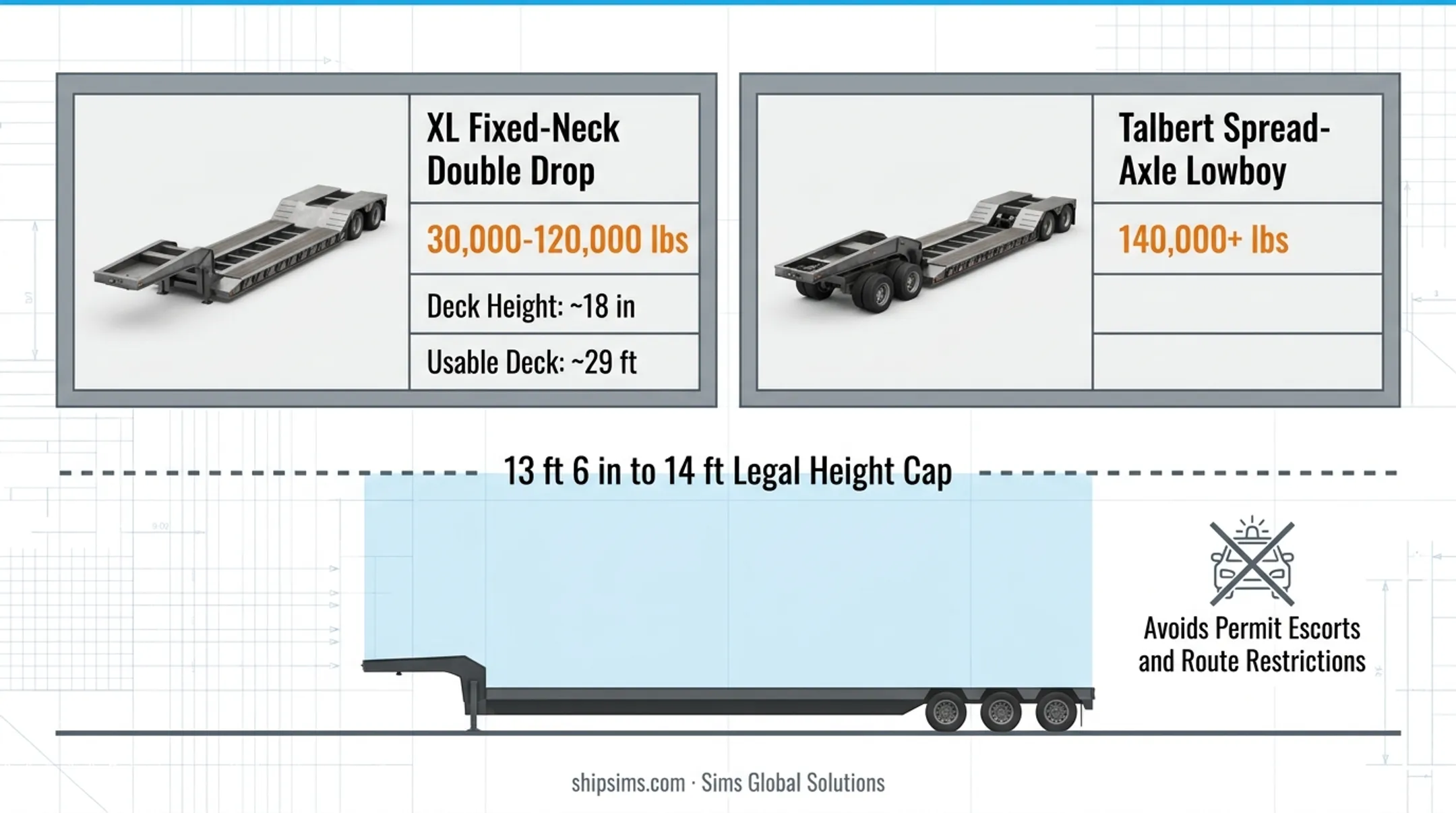

That cost advantage comes with serious capacity too. Standard fixed-neck lowboys, like XL's Fixed-Neck Double Drop, run 30,000 to 120,000 lbs depending on configuration, with typical deck heights around 18 inches and roughly 29 feet of usable deck. Heavier-duty spread-axle lowboys from manufacturers like Talbert push past 140,000 lbs.
The low deck height matters for one big reason: clearance. Federal law sets no blanket vehicle-height maximum, but most states cap legal height between 13 ft 6 in and 14 ft. A lower deck preserves more of that envelope for the cargo itself, often avoiding permit escorts or route restrictions that add cost and delay.
Variations and Common Use Cases
- Fixed-neck double drop: The standard, non-removable configuration
- Spread-axle and modular lowboys: Add axles to distribute weight and boost capacity
- Adjustable deck configurations: Offer flexibility for varying cargo lengths
Lowboys make the most sense when the shipper already has a crane or forklift on-site for loading, since the trailer itself won't drive equipment on and off.
Common lowboy cargo includes:
- Storage tanks and industrial presses
- Generators and compact loaders
- General manufacturing and construction equipment
Lowboys tend to win on shorter, routine hauls where cost control outweighs drive-on convenience. Say a compact loader needs to move 150 miles between two sites with crane access already in place. A lowboy usually gets the job done for less than an RGN would cost to operate.
RGN vs. Lowboy: Which One Should You Choose?
The decision comes down to five factors:
- Equipment type: Is it self-propelled, or does it need to be lifted?
- Load height and weight: Does it exceed standard clearance or axle limits?
- Site access: Is a crane or forklift available at pickup and delivery?
- Trip distance and frequency: One-off haul or repeat route?
- Budget: Can the job absorb higher RGN operating costs?
Choose an RGN when:
- The equipment drives under its own power
- No lifting equipment is available at either end
- The load is tall enough that drive-on loading avoids overhead clearance issues
Choose a lowboy when:
- The load is stationary or non-motorized
- Crane or forklift access already exists on-site
- Cost efficiency matters more than loading speed
Permit Considerations

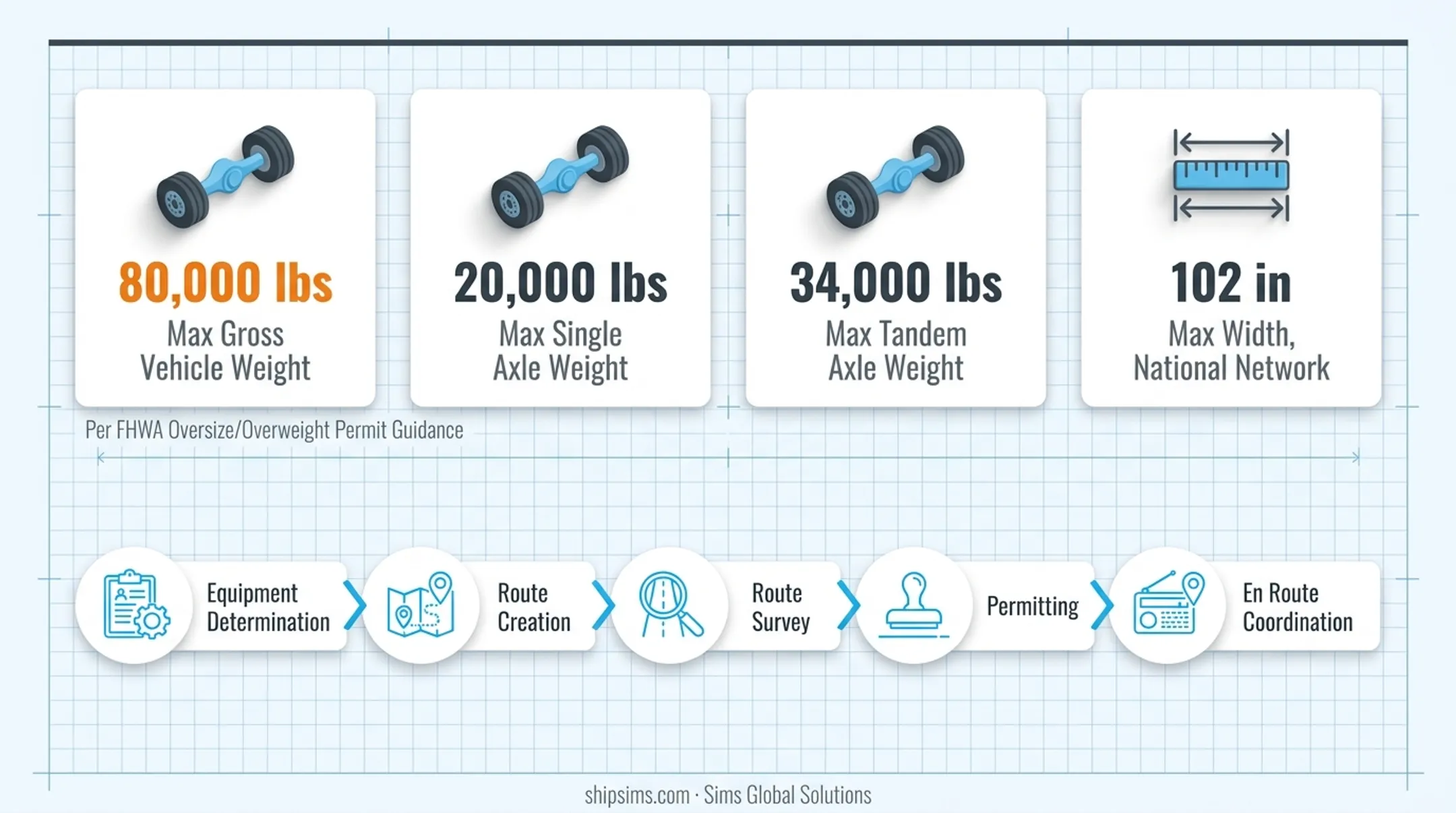

Trailer choice doesn't erase regulatory limits. Federal Interstate rules cap gross weight at 80,000 lbs, single axles at 20,000 lbs, and tandem axles at 34,000 lbs, with a 102-inch width limit on the National Network, per the FHWA's oversize/overweight permit guidance. Exceed any of those, and you're in permit territory regardless of which trailer you're using.
This is where a heavy-haul logistics partner earns its keep. Sims Global Solutions' Heavy Haul Trucking division follows a structured process: equipment determination, route creation, route survey, permitting, and en route coordination. This process matches each load with the right trailer and a vetted carrier from its network, helping shippers moving loads into the hundreds of thousands of pounds avoid guesswork on compliance.
Real-World Example: Matching the Trailer to the Job
Henry Bros LLC, a mining-support company based in Casper, Wyoming, hauls scrapers, dozers, and rock beds using an XL 120 Hydraulic Detachable Gooseneck lowboy. Mining loads like these are exactly the type that benefit from drive-on loading: heavy, tracked equipment that would otherwise require a crane at both ends of the haul.
The principle matters more than the specific model: matching trailer type to equipment mobility eliminates a lifting step entirely. Sims Global Solutions' carrier network and SimsTrak TMS give shippers facing similar decisions a way to plan the move and track it in transit. That visibility confirms the right equipment showed up before the truck ever leaves the yard.
Conclusion
There's no universal "better" trailer between RGN and lowboy. The right call depends on what you're hauling, what's waiting at the destination, and how much budget flexibility you have.
Choose the wrong trailer, and you're looking at wasted site labor, blown schedules, or equipment stuck at the curb. The right choice keeps the load moving once, cleanly, without surprises.
Sims Global Solutions takes the guesswork out of that decision. Our team matches the right trailer type, secures permits, and lines up a vetted carrier before the shipment ever hits the road.
Frequently Asked Questions
What does RGN stand for on a trailer?
RGN stands for Removable Gooseneck. The front section detaches and lowers to the ground, letting equipment drive directly onto the deck without a crane or forklift.
What is the difference between RGN and lowboy?
RGNs have a detachable gooseneck for front, drive-on loading and usually handle heavier loads. Lowboys have a fixed gooseneck, load from the rear, and cost less to operate.
What is the maximum weight for an RGN?
Most RGN models range from 70,000 to 160,000 lbs, with some low-profile configurations rated up to 170,000 lbs when spread across additional axles.
What is the longest RGN trailer?
Extendable RGN models typically stretch from around 29 feet closed to roughly 50 feet open, depending on the manufacturer and configuration.
Is an RGN trailer more expensive to use than a lowboy?
Yes. Hydraulic components and added tare weight push RGN costs higher, though faster loading can offset some of that expense on time-sensitive jobs.
Do I need a permit to haul equipment on an RGN or lowboy trailer?
It depends on the load's width, height, and weight, not the trailer type. A logistics partner can review your load specs and secure the right permits before the move.
