Introduction
Excavators, cranes, generators, industrial presses — none of these roll onto a standard flatbed. Removable gooseneck (RGN) trailers solve that problem, letting construction, energy, mining, and manufacturing teams drive or winch heavy equipment straight onto a lowered deck instead of relying on a crane.
But RGN trailers aren't plug-and-play. Get the sequence wrong, skip a permit, or misjudge weight distribution, and you're looking at delays, equipment damage, or a roadside violation.
That risk isn't going away. Infrastructure spending keeps climbing, and with it, demand for specialized heavy haul capacity. Federal highway investment alone tops $62.8 billion for FY2025, and freight tonnage is projected to keep rising through 2035, according to the American Trucking Associations. More projects mean more oversized loads on the road, raising the stakes for getting RGN operation right.
This guide breaks down exactly how to use one, step by step.
Key Takeaways
- RGN trailers suit drive-on or winched equipment, not lightweight loads a flatbed handles cheaper
- Permits, CDL endorsements, and hydraulic checks come before any detachment
- The core sequence never changes: detach, lower, load, reattach, verify
- Watch tie-downs and hydraulic pressure throughout the haul, not just at pickup
- Without an in-house fleet or drivers, a heavy haul partner removes that burden entirely
When Should You Use a Removable Gooseneck Trailer
RGN trailers earn their keep when equipment needs to be driven or rolled directly onto the deck rather than lifted. Think bulldozers, wheel loaders, compactors, or any non-operational vehicle that can't be craned safely.
They're the wrong choice when:
- Cargo is lightweight or palletized: a standard flatbed or step deck moves it for less money
- You're running frequent multi-stop routes: a folding gooseneck trailer often handles quick load/unload cycles more efficiently
- Height isn't actually a constraint: if your equipment clears standard deck heights, you're paying for capability you don't need
Height clearance is usually the deciding factor. State legal vehicle-height limits generally run 13 ft 6 in to 14 ft, though this varies by road and jurisdiction, per FHWA's federal size regulations report. An RGN's low-deck design buys back several inches of clearance that a standard trailer can't offer, often the difference between a legal move and a permit nightmare.
That said, don't treat 13 ft 6 in as a guarantee. Every bridge and overpass on your route needs individual verification before you commit to a path.

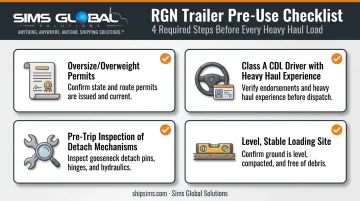

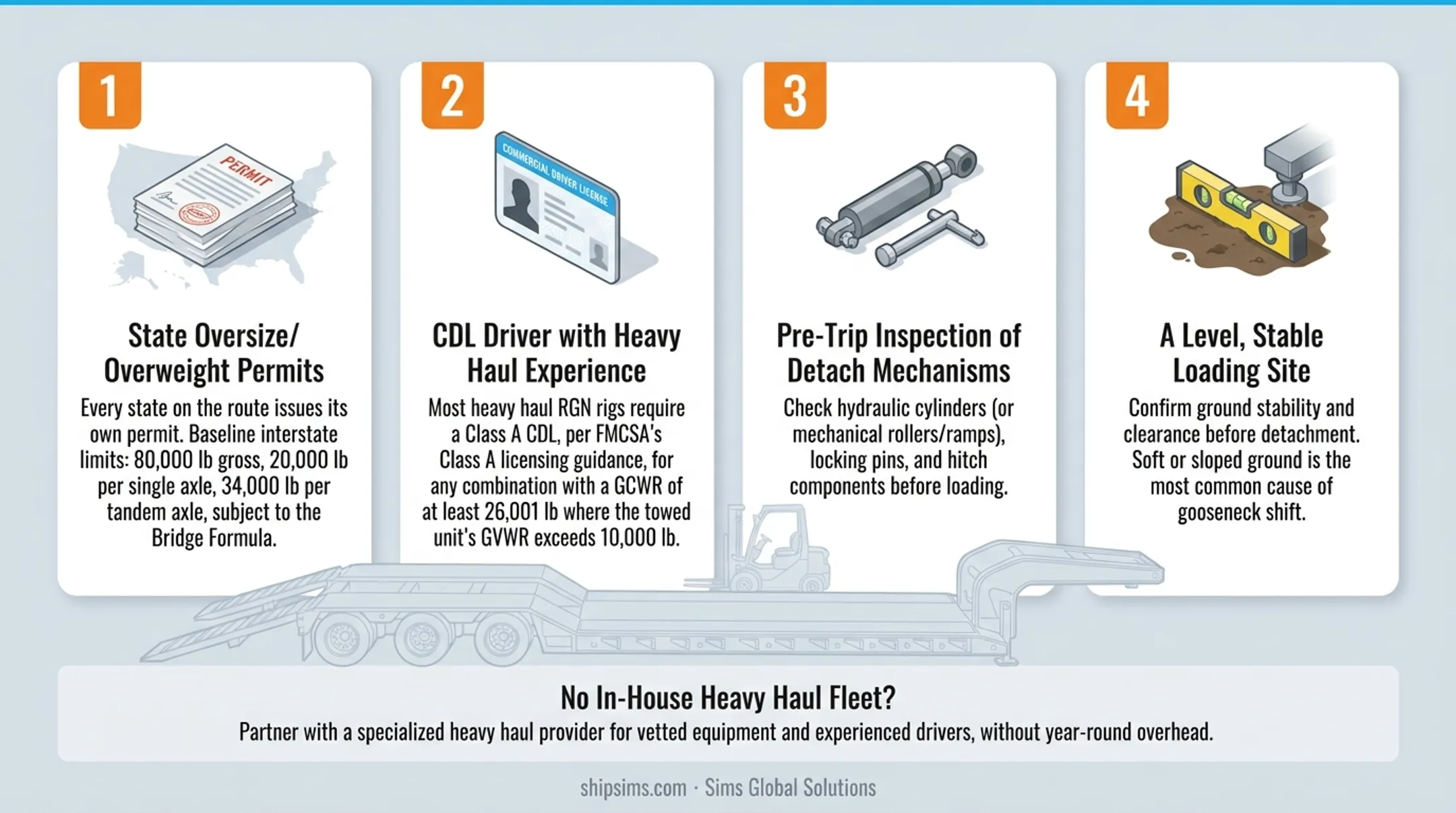

What You Need Before Using an RGN Trailer
Skipping prerequisites is where most RGN problems start. Four things need to be confirmed before the trailer ever touches ground.
Oversize/overweight permits for every state on the route. States, not the federal government, issue these permits, and they're required whenever axle weight or gross weight exceeds legal limits. Interstate baseline limits sit at 80,000 lb gross, 20,000 lb per single axle, and 34,000 lb per tandem axle, subject to the Bridge Formula. Cross three states, and you need three sets of paperwork, each with its own quirks.
A CDL driver with heavy haul experience. RGN combinations handle differently than standard flatbeds, especially during detachment and loading. Most heavy haul RGN rigs require a Class A CDL. This applies to any combination with a GCWR of at least 26,001 lb where the towed unit's GVWR exceeds 10,000 lb, per FMCSA's Class A licensing guidance. Standard flatbed experience doesn't automatically translate.
Pre-trip inspection of detach mechanisms. Check hydraulic cylinders (or mechanical rollers/ramps), locking pins, and hitch components before loading, not after something fails mid-sequence.
A level, stable loading site. Confirm ground stability and clearance before you attempt detachment. Soft or sloped ground is the single most common cause of gooseneck shift during setup.
Companies without an in-house heavy haul fleet or RGN-trained drivers often partner with a specialist instead of building that capability internally. Sims Global Solutions' Heavy Haul division, for example, provides vetted equipment and experienced drivers without the year-round overhead.

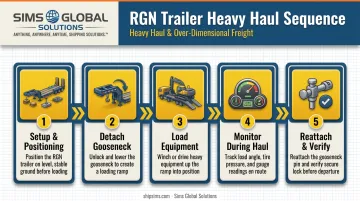

How to Use a Removable Gooseneck Trailer (Step-by-Step)
RGN operation follows a fixed sequence. Skip a step, such as reattaching without verifying locks, and you create one of the leading causes of in-transit failures.
Setup and Preparation
Position the truck-trailer combination on level, stable ground before touching the detach mechanism. Check the surrounding area for enough clearance to drive equipment on safely.
The most common error here: attempting detachment on sloped or soft ground. The gooseneck can shift unpredictably the moment tension releases, creating a hazard before loading even starts.
Initiating Use (Detaching the Gooseneck)
Unlock the connection locking mechanism and loosen the securing hardware between the gooseneck and deck.
- Hydraulic systems use cylinders for smoother, powered detachment. Talbert's operator manual outlines a sequence involving lock controls, stop pins, and support arms
- Mechanical systems rely on rollers and ramps, requiring more manual effort and physical positioning
You'll know initiation went correctly when the deck rests flat on the ground with no residual tension on the pins. If there's still pressure or the deck won't sit flush, stop and recheck before proceeding.
Operating (Loading) the Trailer Correctly
Drive or winch equipment directly onto the lowered deck, keeping it centered and aligned with tie-down points.
Load limits vary significantly by model:
| Trailer Type | Typical Capacity |
|---|---|
| Standard RGN | 70,000–120,000 lb |
| Reinforced/Stretch RGN | Up to 170,000 lb (55–85 tons) |
Exceeding rated capacity compromises axle and suspension performance. There's no universal "RGN capacity," so always confirm the specific model's rating before loading.
Weight distribution matters just as much as total weight. Uneven loading translates directly into on-road instability and accelerated tire wear over the length of the haul.
Monitoring During Use
Once loaded and the gooseneck is reattached, recheck locking pins, tie-down tension, and hydraulic pressure before departure. FMCSA requires at least four tiedowns for equipment weighing 10,000 lb or more, with an aggregate working load limit of at least half the cargo weight, per FMCSA's cargo securement rules.
Watch for trouble signs en route:
- Trailer sway or fishtailing
- Uneven tire wear developing mid-haul
- Hydraulic warning indicators
Any of these can signal a shifted load or a failing component. Pull over and inspect rather than pushing through.
Shutting Down / Completing Use

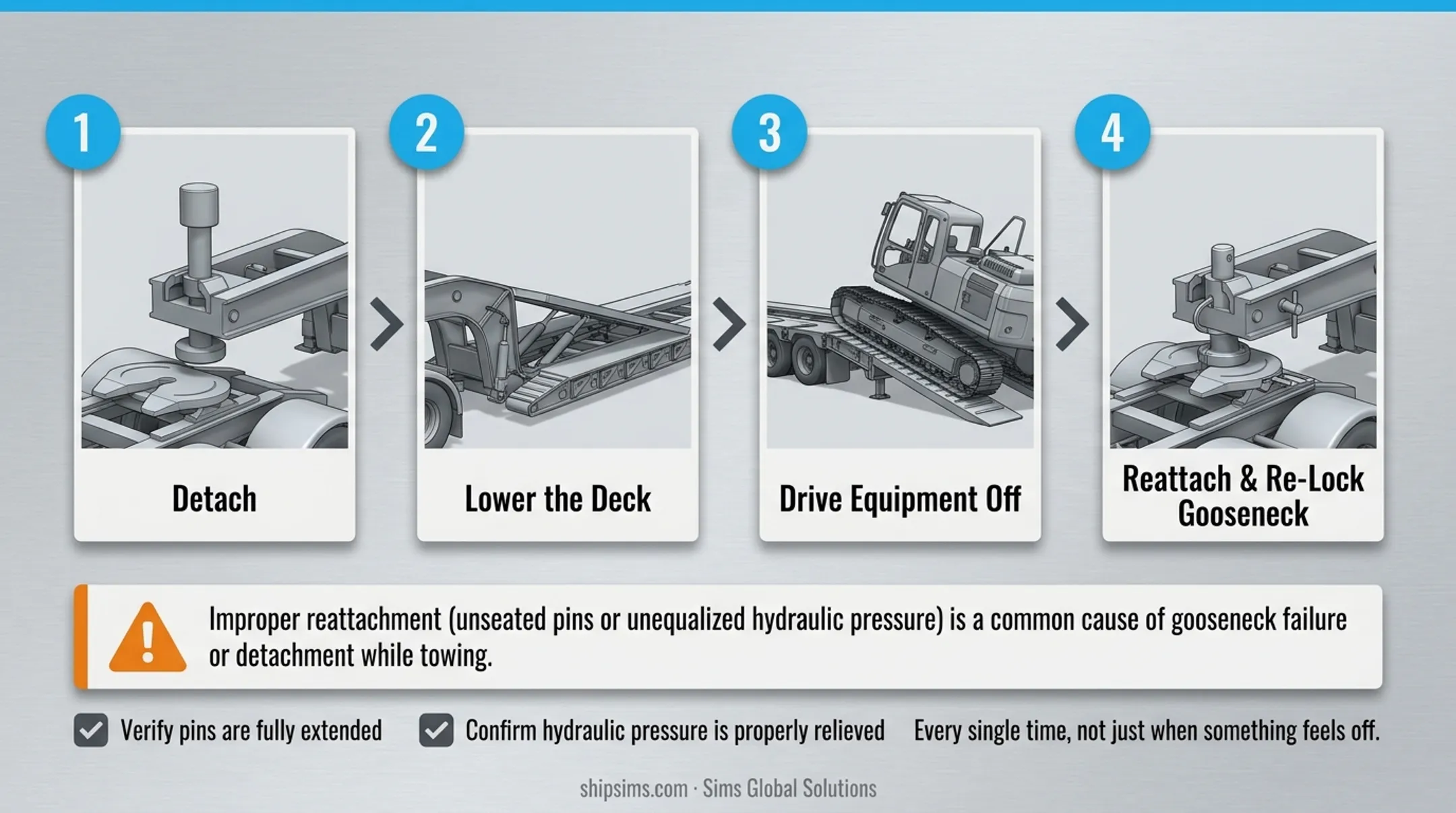

Reverse the sequence: detach, lower the deck, drive equipment off, then reattach and re-lock the gooseneck before storage or the next haul.
Improper reattachment (unseated pins or unequalized hydraulic pressure) is a common cause of gooseneck failure or detachment while towing. Verify pins are fully extended and pressure is properly relieved every single time, not just when something feels off.
Best Practices for Using RGN Trailers Effectively
A few habits separate smooth hauls from costly ones:
- Inspect before and after every load. Hydraulic seals and pins wear with repeated detach/reattach cycles, so treat inspection as routine, not optional
- Match trailer type to the equipment. Standard, extendable, double drop, and stretch RGNs each suit different dimensions; defaulting to one size wastes capacity or risks overload
- Recheck load security at stops. This matters most on longer hauls, especially after the first hour when initial settling occurs
- Train drivers specifically on RGN procedures. Standard flatbed experience doesn't cover detach/reattach mechanics — assuming it does is how mistakes happen
For businesses without dedicated RGN equipment or trained operators, offloading this risk to a heavy haul specialist makes practical sense. Sims Global Solutions, for example, pairs its own heavy haul fleet with a network of over 150,000 vetted carriers. This combination gives shippers access to the right trailer configuration and experienced drivers without building that capability in-house.
Conclusion
Using an RGN trailer correctly comes down to disciplined sequencing: detach, lower, load, reattach, verify — every single time, no shortcuts.
Treat driver training and proper procedure as protection for your equipment and your bottom line. When loads, permits, or logistics grow more complex than your team can manage confidently in-house, that's where an experienced partner helps. Sims Global Solutions brings its own heavy haul fleet and a vetted carrier network to close that gap.
Frequently Asked Questions
What is a removable gooseneck?
A removable gooseneck is the detachable front section of a lowboy trailer. It disconnects and lowers to the ground, creating a ramp so heavy equipment can be driven or winched directly onto the deck.
What is the difference between removable gooseneck and lowboy?
"Lowboy" describes the low-deck trailer style broadly. "RGN" refers specifically to the detachable connection mechanism many lowboys use for front-loading equipment.
Is bumper pull or gooseneck better?
Gooseneck trailers hitch over the rear axle, giving better stability and higher weight capacity. This makes them the better fit for heavy equipment, while bumper pulls work fine for lighter, smaller loads.
How much weight can an RGN trailer carry?
Standard RGN trailers typically handle 70,000 to 120,000 lb, while reinforced or stretch versions reach up to 170,000 lb. Exact capacity depends on axle count and configuration.
Do you need a special license to tow a gooseneck trailer?
Yes, CDL requirements depend on combined gross weight. Most heavy haul RGN combinations require a Class A CDL with weight-appropriate endorsements.
How do you load equipment onto a removable gooseneck trailer?
Detach the gooseneck, lower the deck fully to the ground, drive or winch the equipment on centered and aligned with tie-down points, then reattach and verify all locking pins before departure.
