Many shippers don't find out whether their carrier is actually running air ride equipment until something goes wrong: a cracked housing, a rejected load, or a damage claim that eats into margin. Brokers sometimes promise air ride and deliver spring ride instead, simply because they lack visibility into what their carriers dispatch.
This guide covers what air ride flatbed trucks actually are, the benefits they bring to sensitive or high-value freight, how they stack up against spring ride trailers, what they cost, and how to book capacity you can count on.
Key Takeaways
- Air ride flatbeds use pressurized air springs, not leaf springs, for stable ride height and load control.
- Reduced vibration protects fragile, high-value freight like electronics, machinery, and medical equipment
- Aerospace, defense, and medical device shippers often require air ride as a load condition
- Choose spring ride for rugged, consistent loads and air ride for variable, sensitive freight.
- Verified equipment specs protect your shipment better than carrier claims alone.
What Is an Air Ride Flatbed Truck?
An air ride flatbed truck is a flatbed trailer that uses air spring suspension instead of a traditional leaf spring pack to support the deck and cargo.
Instead of stacked steel springs absorbing road shock, the trailer rides on flexible rubber air springs, often called bellows or air bags, inflated with compressed air from the truck's air system.
Here's how that plays out on the road:
- Air springs sit between the trailer frame and axle, cushioning impact from potholes, uneven pavement, and expansion joints
- A height control valve continuously monitors ride height and adds or releases air as cargo weight changes
- As freight is loaded or unloaded across multiple stops, the system automatically rebalances to keep the trailer level
Compare that to a spring-ride flatbed, which relies on rigid leaf springs. Leaf springs don't self-adjust.
They compress under weight and can settle or sag when a load is heavy, uneven, or off-center. That works fine for consistent, fully loaded hauls, but it becomes a liability when weight distribution shifts from stop to stop.

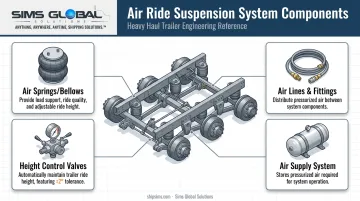

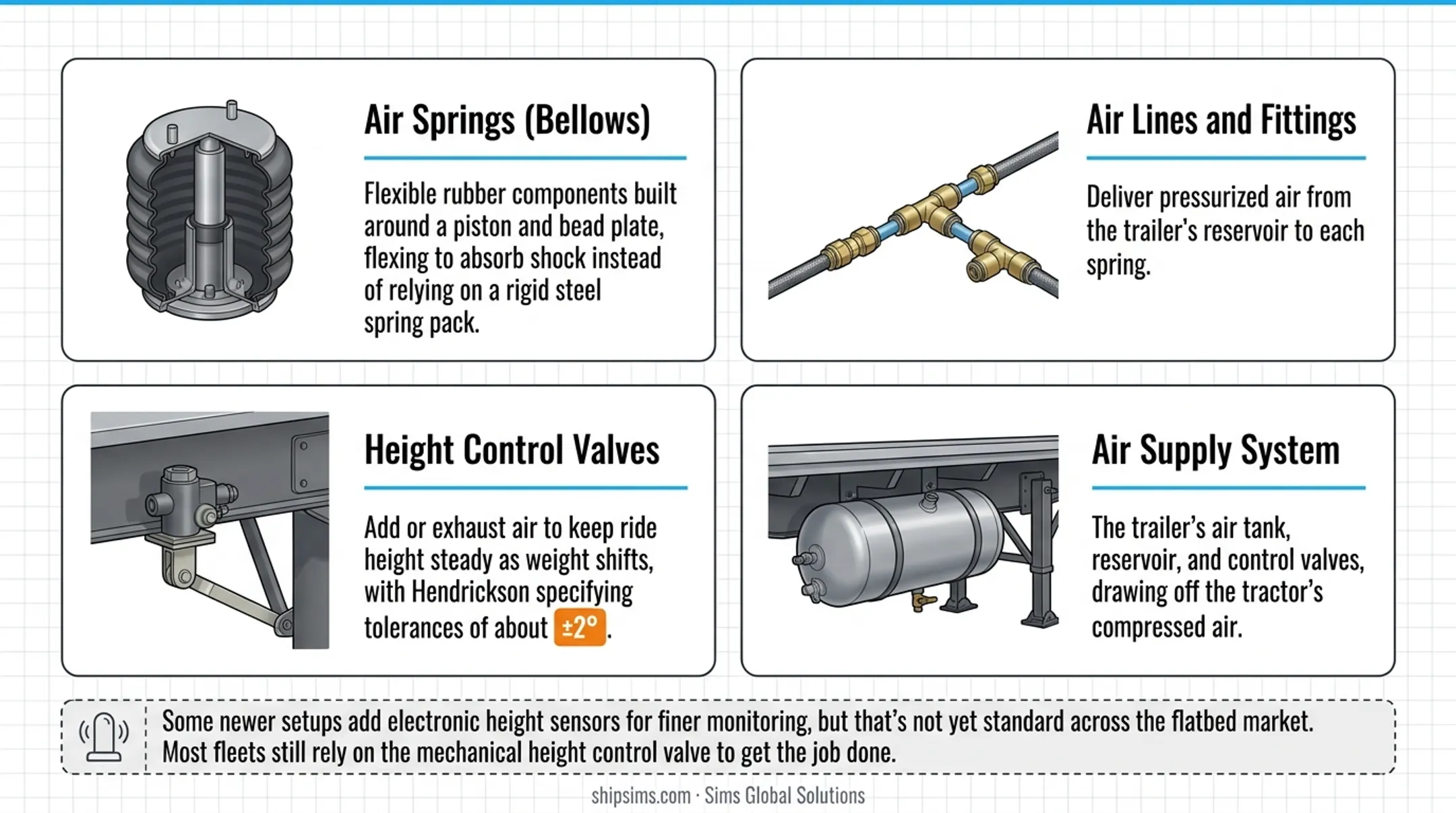

Key Components That Make Air Ride Work
Four parts do most of the heavy lifting:
- Air springs (bellows): Flexible rubber components built around a piston and bead plate, flexing to absorb shock instead of relying on a rigid steel spring pack
- Air lines and fittings: Deliver pressurized air from the trailer's reservoir to each spring
- Height control valves: Add or exhaust air to keep ride height steady as weight shifts, with Hendrickson specifying tolerances of about ±2 degrees
- Air supply system: The trailer's air tank, reservoir, and control valves, drawing off the tractor's compressed air
Some newer setups add electronic height sensors for finer monitoring, but that's not yet standard across the flatbed market. Most fleets still rely on the mechanical height control valve to get the job done.
Key Benefits of Air Ride Flatbed Trucking for Shippers
Reduced vibration protects sensitive freight. Air springs change stiffness with the load, keeping the ride smoother across a wider range of conditions than steel springs allow.

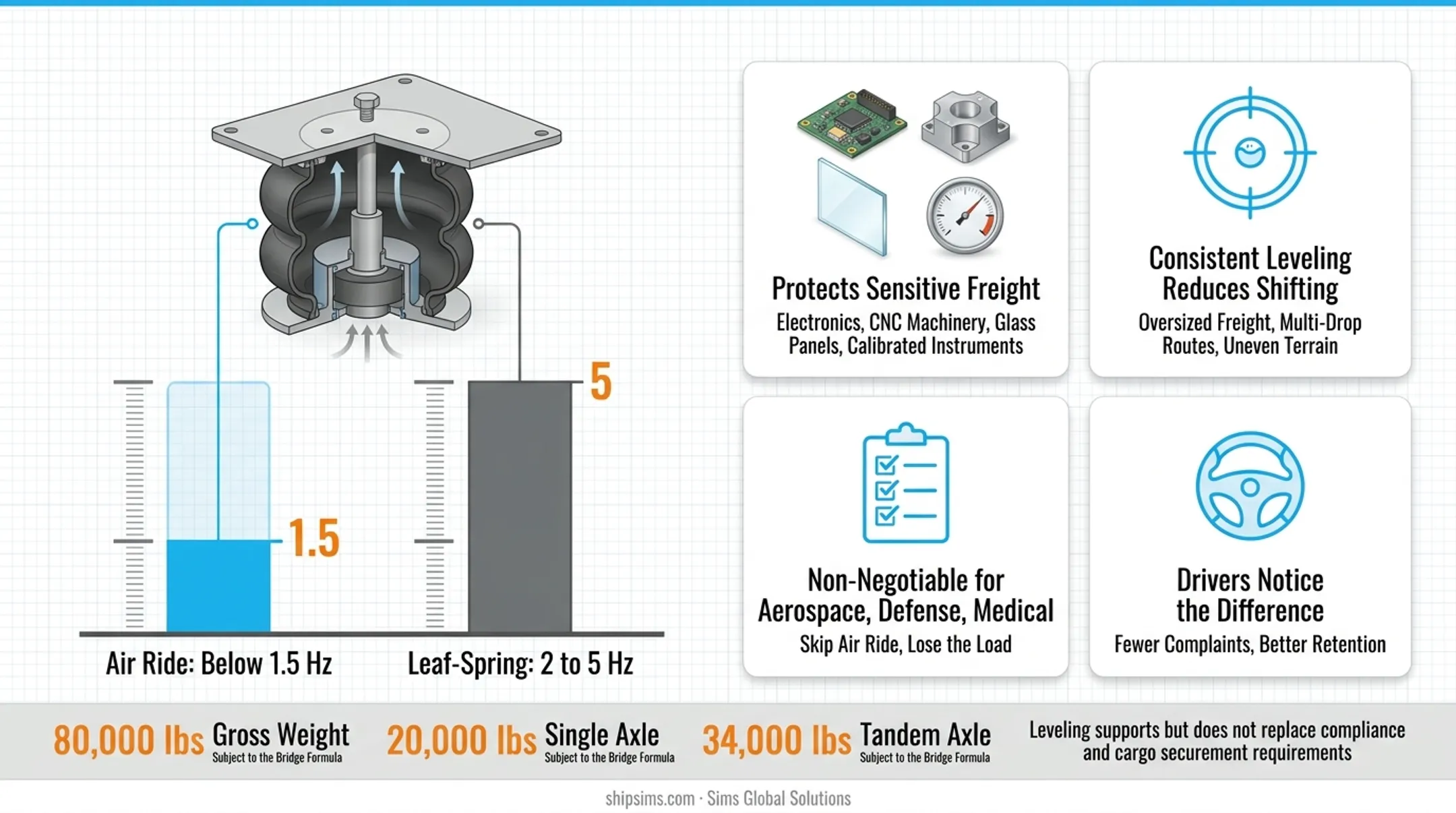

Hendrickson reports trailer air suspensions produce natural frequencies below 1.5 Hz, compared with a typical 2 to 5 Hz for mechanical leaf-spring systems. That's a meaningfully calmer ride for anything bolted to the deck.
That calmer ride translates into fewer damage claims for:
- Electronics and semiconductor equipment
- Precision and CNC machinery
- Glass, panels, and coated surfaces
- Instrumentation and calibrated devices
Consistent leveling reduces shifting. Because the suspension self-adjusts, the trailer holds a level stance even as weight distribution changes mid-route. That matters most on oversized freight, multi-drop shipments, and uneven terrain where a sagging spring pack could throw a load off balance.
It's a non-negotiable spec for certain industries. Many aerospace, defense, and medical device shippers won't even consider a carrier without air ride equipment. Skip that box, and the freight simply goes to someone else, regardless of rate.
Drivers notice the difference too. Carriers running air ride equipment consistently report fewer complaints about road jarring and long-haul fatigue, a small factor that adds up when driver retention is already a persistent challenge.
Even weight distribution supports compliance. Automatic leveling helps keep weight balanced across axles, which supports, but doesn't replace, federal weight rules.
FHWA caps gross weight at 80,000 lbs on the Interstate system, with 20,000 lbs on a single axle and 34,000 lbs on a tandem axle, subject to the Bridge Formula. Leveling helps you stay inside those limits. It doesn't certify compliance on its own, and proper cargo securement remains a separate requirement.
Air Ride vs. Spring Ride Flatbed: Which Should You Choose?
Spring ride trailers aren't obsolete. The right choice depends on how consistent your load actually is.
Spring ride wins when the load is heavy, fully packed, and consistent from pickup to delivery, think 30,000 to 45,000 lb loads of steel, lumber, or aggregate that don't shift in composition. Leaf springs are mechanically simpler, with no pneumatic components to maintain, and hold up well under sustained heavy weight on rough terrain.
Air ride wins when weight varies mid-route, when freight is mixed or lightweight, or when the shipper has mandated air ride as a contract condition. It also tends to perform better on trailers running empty or lightly loaded between hauls.
That flexibility comes with a tradeoff: air ride systems add more components that can fail. Bags, valves, and lines all need periodic inspection, so fleets running air ride typically budget for slightly higher maintenance overhead than spring-ride operators.
| Load Type | Recommended Suspension |
|---|---|
| Heavy, consistent weight (30,000-45,000 lbs), rough terrain | Spring ride |
| Mixed, variable, or lightweight loads | Air ride |
| Sensitive or shipper-mandated freight | Air ride |
| Simple, budget-conscious hauls | Spring ride |
Air ride flatbeds typically carry a higher upfront equipment cost than spring-ride trailers, mostly due to the added air springs, valves, and air lines. Exact pricing varies by manufacturer and axle configuration, and most build-to-order rather than publish a flat premium.
For shippers hiring capacity instead of buying trailers, that difference shows up in freight rates, not a separate line item.
Ideal Cargo Types for Air Ride Flatbed Shipping
Certain freight categories benefit enough from air ride that shippers write it into carrier requirements from day one. Cargo that typically calls for it includes:
- Aerospace and defense components - tight tolerances leave little room for shock or vibration damage
- Medical device equipment - calibration-sensitive units that can be thrown off by hard jolts
- Precision machinery - CNC equipment, robotics, and similar gear where a cracked housing means a costly repair
- **Material handling and industrial equipment** - forklifts, conveyors, and other assets that are expensive to replace and awkward to secure
Oversized and heavy haul loads benefit too, especially on long-distance, multi-axle moves where a consistent, level ride matters over hundreds of miles. When a load spans multiple axle groups, uneven settling on one corner can create handling and compliance headaches nobody wants mid-route.
This requirement can disqualify carriers before a load is ever quoted, since brokered capacity doesn't always guarantee the right equipment is available. Sims Global Solutions' own heavy haul fleet lets shippers confirm air ride availability directly, rather than hoping a brokered carrier happens to have it.
What Does Air Ride Flatbed Shipping Cost?
"Cost" means two different things here, and they're worth separating.
Installing air ride suspension (fleet owners). Retrofitting a trailer involves purchasing a kit, air springs, height control valves, brackets, and air lines, plus installation labor.
Pricing varies by trailer size and axle configuration. Manufacturers like Hendrickson offer conversion kits, but installed pricing isn't standardized industry-wide, so get a shop quote based on your specific trailer.
Hiring air ride flatbed freight service (shippers). If you're shipping freight rather than owning the trailer, you're not paying an installation cost, you're paying a freight rate. That rate depends on:
- Load size, weight, and dimensions
- Origin-to-destination distance
- Current market capacity and seasonal demand
- Air ride equipment availability in that specific lane
Capacity has been tightening. FreightWaves reported its Flatbed Truckload Index running 18% higher year over year in early 2026, driven partly by data center construction and general market tightness.
When capacity gets tight, specialized equipment like air ride flatbeds gets harder and pricier to secure on short notice.
Sims Global Solutions combines owned trucking assets with a network of 150,000+ carriers, giving shippers access to air ride capacity at competitive rates. You get the equipment without the overhead of owning and maintaining it yourself.
How to Book Dependable Air Ride Flatbed Capacity
Finding a carrier that says they run air ride is easy. Confirming they'll actually show up with the right trailer is harder, especially on short notice for heavy haul or high-value freight where a substitution isn't an option.
Owned assets plus a 35,000+ carrier network. Sims Global Solutions operates its own heavy haul trucking assets alongside a network of more than 35,000 truckload carriers. That combination opens up air ride flatbed capacity that a traditional, asset-light brokerage often can't reach, particularly when demand spikes or a lane tightens up.

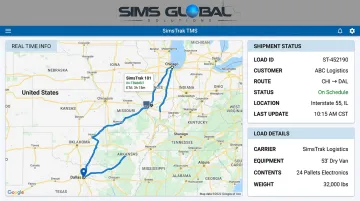

Real-time visibility with SimsTrak. Once a load is booked, the proprietary SimsTrak Transportation Management System keeps shippers informed on shipment status as it happens. For sensitive or high-value freight, knowing exactly where a load is takes a lot of the guesswork out of transit.
Carrier vetting you can rely on. An in-house Carrier Procurement Team vets every carrier for safety history and equipment quality before that carrier gets access to a load.
For high-value shipments, A+ rated supplemental cargo insurance is also available, adding a layer of protection beyond standard cargo coverage. This kind of premium handling falls under Sims Global's specialized freight services, built for delicate or high-value cargo that can't afford a rough ride.
What this means for your next shipment:
- Equipment that matches your freight, not just whatever happened to be available
- Visibility into your shipment instead of a black box between pickup and delivery
- A partner who can flex between owned assets and a deep carrier network based on what your lane actually needs
If your next shipment can't afford to ride rough, connect with Sims Global Solutions' heavy haul trucking team to build an air ride flatbed solution around your freight, your timeline, and your budget.
Frequently Asked Questions
What is an air ride flatbed?
An air ride flatbed is a flatbed trailer that uses pressurized air springs instead of leaf springs to support the deck. It self-adjusts to keep ride height consistent as cargo weight changes, delivering a smoother ride than a spring-ride trailer.
How much does it cost to put air ride suspension on a truck?
Retrofitting a trailer involves a parts-and-labor cost that varies by trailer size and configuration, with no standardized price across the industry. Shippers hiring freight service don't pay this cost directly; they pay a shipping rate instead.
Is air ride required for certain types of freight?
Yes. Many shippers in aerospace, defense, and medical device industries mandate air ride equipment as a condition of the load, since their cargo is especially sensitive to vibration and shock damage.
How long do air ride suspension systems typically last?
With proper maintenance, air ride systems can run for years of steady service. Airbags, valves, and fittings may need attention as the trailer ages, so manufacturers recommend scheduled inspections rather than waiting for a failure.
Can I request an air ride flatbed for any shipment?
Most modern flatbed fleets run air ride as standard equipment, but availability still varies by carrier and lane. Always confirm equipment type with your carrier or broker before booking rather than assuming.
What's the main difference between air ride and spring ride flatbed trailers?
Air ride uses adjustable air springs for a smoother ride under variable loads, while spring ride relies on fixed leaf springs built for consistent, heavy weight. Air ride suits sensitive freight; spring ride suits rugged, uniform loads.
